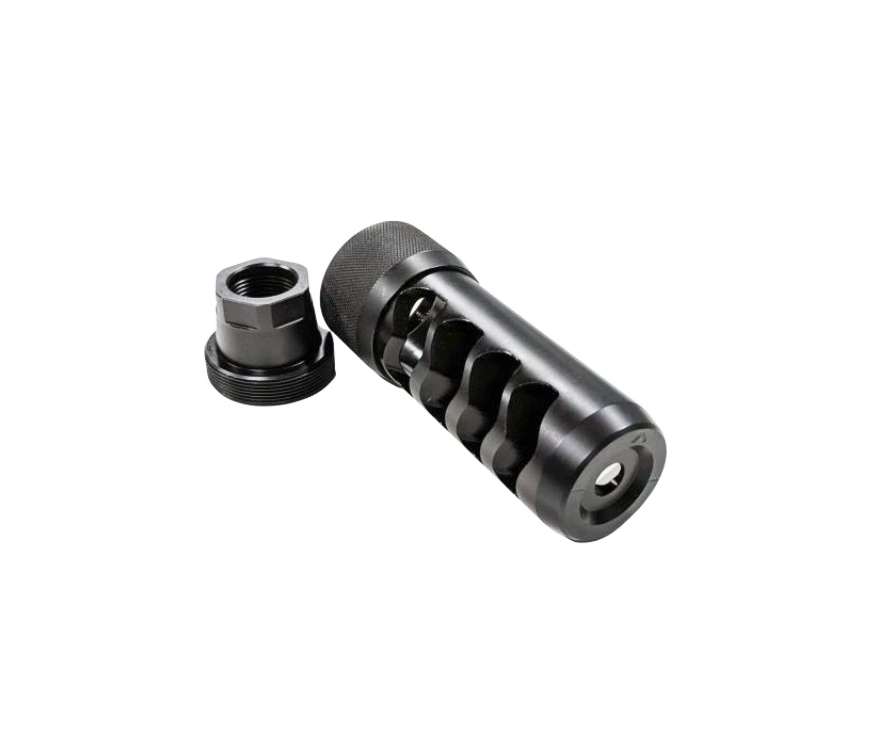

Area 419: Sidewinder Magnum Self-Timing Muzzle Brake, Black Nitride

PARENT 419 419SW
The SIDEWINDER Self Timing Brake is not just another knockoff copy of existing self timing brakes.  It was engineered from the ground up to be extremely effective, easier to install, and much more versatile.  The SIDEWINDER uses the same patent pending self timing technology as the HELLFIRE, only larger.  Read more on all of its advantages below:

Caliber Selection:

In order to simplify the choices, we have three caliber selections available for the SIDEWINDER brake.  The difference in efficiency between using a caliber specific brake bore and the next size up is very minimal, so we decided to simplify things in order to lower overall costs to you the consumer.  As you can imagine, trying to stock the exact quantities required of six or so different calibers would be impossible.

  • 30 Cal – Good for any bullet caliber up to and including 0.308, ie 223, 6mm, 6.5mm, 7mm
  • 338 Cal – Good for any bullet caliber up to and including 0.338
  • 375 Cal – Good for any bullet caliber up to and including 0.375

Notable Features:

  • Extremely easy installation, brake WILL NOT turn as you torque the collar to lock.  No more guessing where the brake ports will line up once you tighten it down!
  • Simple round knurled nut that requires no tools to time the brake.
  • Return to zero is excellent.  This means removal of your brake and re-installation will not require a zero change.
  • Suppressor mounts like those available for the HELLFIRE will be available soon.
  • Simply torque the universal adapter onto your barrel with a 13/16″ wrench, this piece never has to come off.  Next, LEFT HAND thread the brake/collar assembly onto the adapter until it is almost snug.  Now rotate the brake until it is level, push the brake into the adapter and you will feel it lock onto the taper.  Now tighten the collar fully by hand, and you are done!

SIDEWINDER Muzzle Brake:

  • Rearward facing ports for the ultimate in recoil reduction.  The SIDEWINDER is modeled after our extremely popular HELLFIRE brake, which was independently tested side by side with the best brakes on the market.  The HELLFIRE showed 52% recoil reduction on a 6.5 Creedmoor test rifle.   This is ~4% more than the one of the most popular brakes on the market.  The SIDEWINDER has one more port and is larger in diameter – so you can expect a notable increase in recoil abatement.
  • Proprietary port design controls muzzle rise without the use of top porting.
  • Proprietary progressive port design.  The amount of work done by a muzzle brake as you move away from the muzzle decreases with distance.  Knowing this, we decided to increase the size of the first port and decrease slightly with every port further out.  This keeps the overall length down, without sacrificing efficiency.
  • Face of brake is engraved with caliber to indicate the top for correct orientation, and a horizontal line to aid in leveling.
  • Made from heat treated 17-4PH Stainless Steel
  • Brakes will be available in Black Nitride finish or raw stainless (all universal adapters will be black)
  • Manufactured on state of the art CNC Machines right here in NW Ohio.  100% Made in USA.
  • 1.125″ OD Brake, 1.275″ OD collar


Write a Review
  • 5
    Area 419 sidewinder self timing muzzle break .30 cal

    I bought one of these breaks and took it to the range today and tried it out. first off this is VERY well made 2 piece design, the adapter and the break. Once on the rifle It is very solid. I was intrigued with the 50% reduction in recoil claim they made, and well, I was spotting all my own shots and that is what I wanted to achieve. It is a big improvement over my old break! I am shooting a 6.5 Creedmoor with the .30 cal size break which is the size that is suggested by the manufacturer. The side slotted muzzle breaks are never the quietest but this 3 port isn't too bad compared to any I have listened to in the past. It is on the expensive side but it is a high quality break. It is well made packaged and includes good instructions, it does everything it claims to, well.
