JPCP-223: Enhanced CAM Pin, .223

JP Enterprises
Current Stock:
Adding to cart… The item has been added

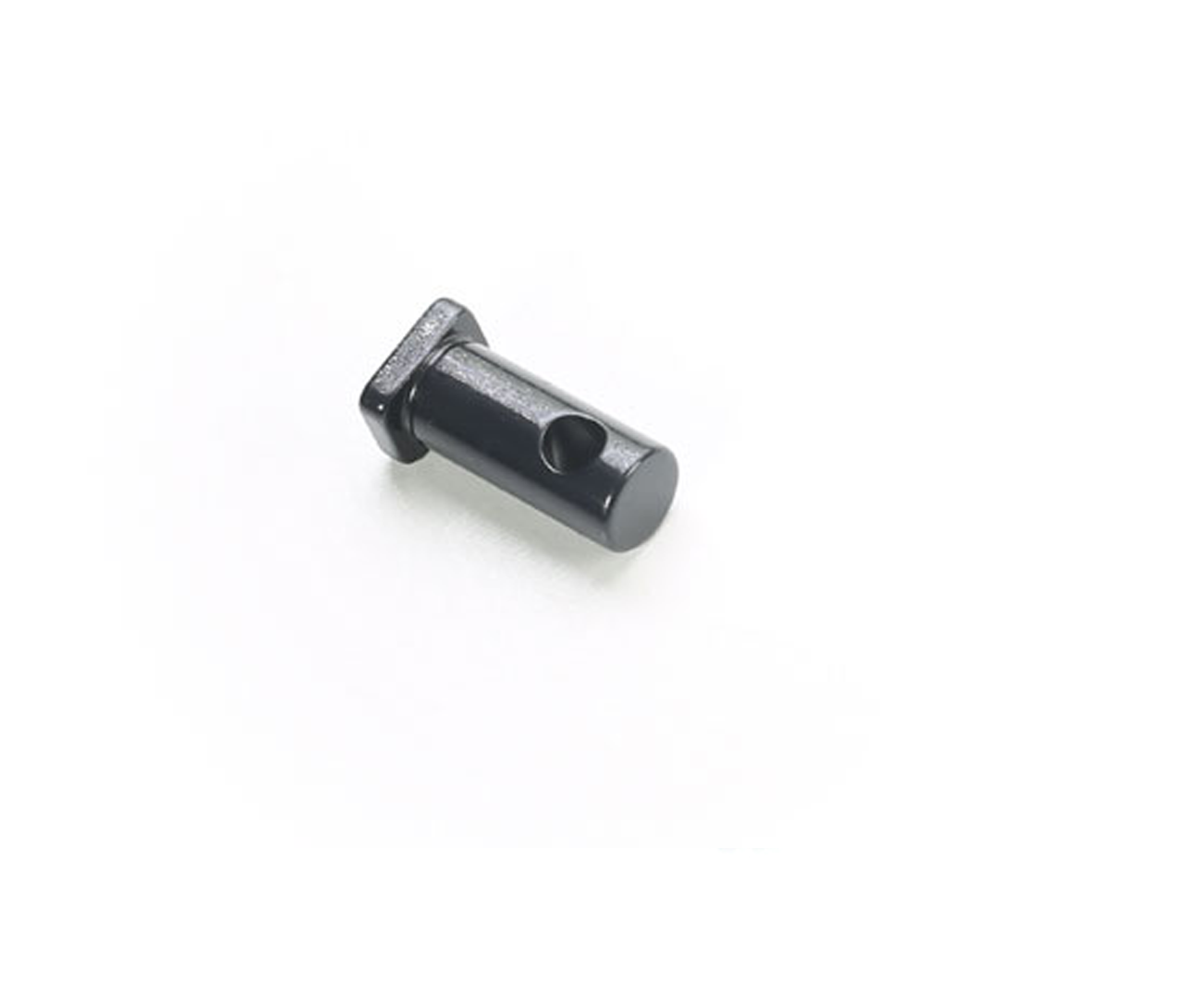

Enhanced Cam Pin
   Small Frame (.223)

Mil-spec never dies, but it's way past its prime.

When it comes to ARs, the smaller the part, the less people think about it. But that doesn't mean there's not room for improvement almost everywhere you look. Both in design and manufacturing, there are always gains to be made.

The JP Enhanced Cam Pin retains every critical Mil-spec dimension of the part but improves on both design and finish. A smoother operating system with lower overall wear in the components is the result.

In addition to receiving our low-friction QPQ finish, our Enhanced Cam Pins are also machined thicker than the usual undersized dimension of standard pins. An undersized pin drops right in but allows slop in the relationship between bolt, bolt carrier and cam pin. Looseness in these parts stresses the cam pin hole of the bolt during cycling, which is why bolt breakage is so common at this point. It also wears the cam pin faster as the carrier wears into the material at the bearing points. A tighter pin with low-friction coating cuts all this wear down dramatically.

Finally, we hold the upper receiver-to-cam pin width precisely to keep the bolt in alignment with the barrel. This reduces premature lug wear to the barrel extension.

These cam pins are available individually and are now the JP standard cam pin wherever we use them.


  • Tighter dimensional tolerances for reduced bolt assembly and cam pin wear
  • Elimination of sharp edges dramatically reduced wear to the upper receiver
  • Smoother operation thanks to additional polishing to all critical surfaces
  • Rock-hard QPQ coating for corrosion resistance and lubricious cycling
  • Mil-spec compatible requiring no additional proprietary parts
