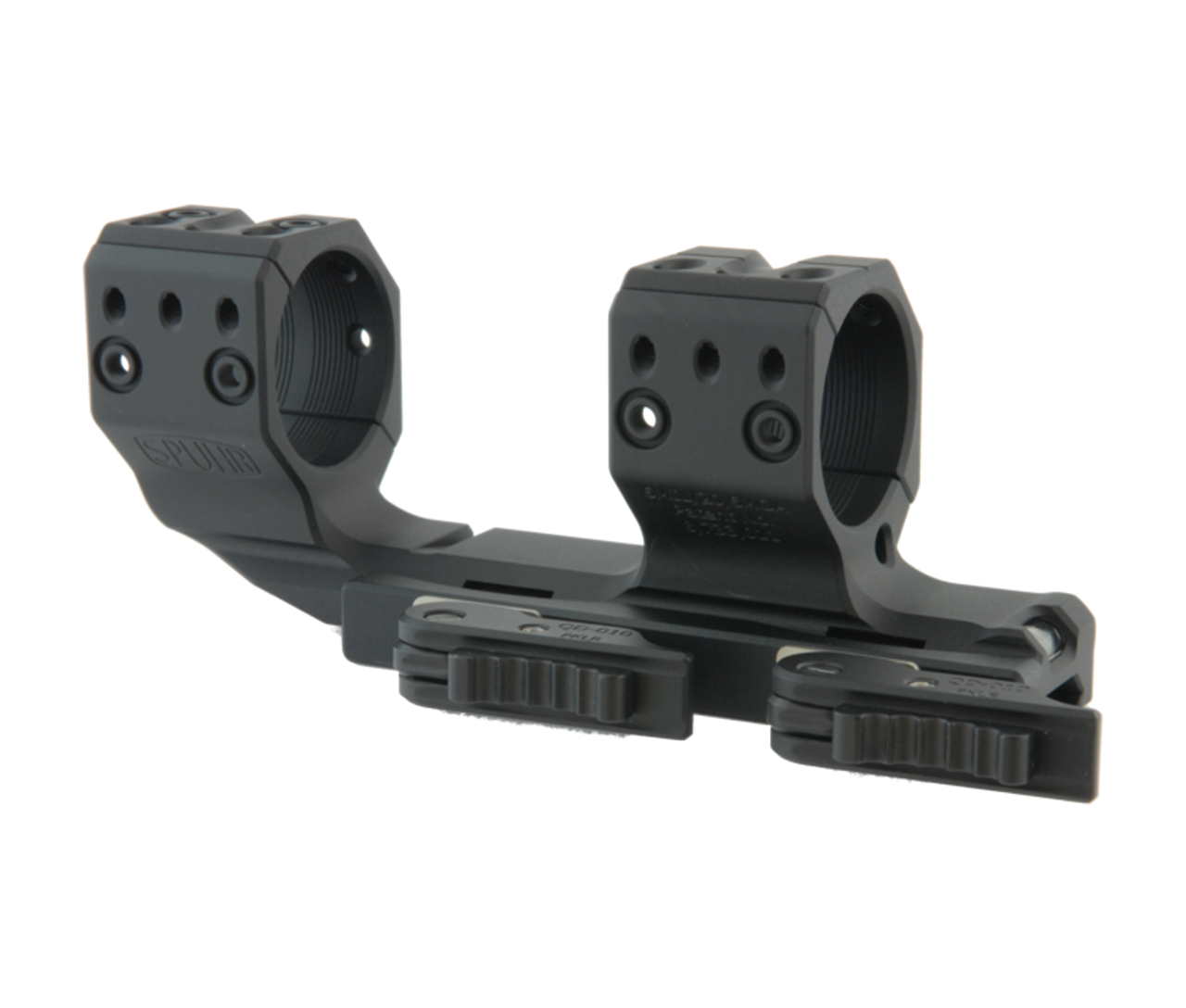

Spuhr QDP-4616: 34mm Cantilever Scope Mount 6 MIL/20.6 MOA Quick Detach

SKU:
Spuhr : QDP-4616
$495.00
QDP-4616 - Cantilever Mount

Ring Size:  34mm
Tilt:  6 MIL/20.6 MOA
Height:  38mm (1.50in)
Length:  151mm (5.94in)

Spec Sheet (PDF)



Quick detachable mount featuring side clamp
and dual levers on the left side of the mount,
with tensioning screws on opposite side of
the mount body.



Durability

Prevents damage on scope due to flexing during heavy recoil or rough environment. The sniper’s rifle and the spotter’s carbine can have the same mount, enabling the use of same equipment and accessories. Rings are grooved inside to get a better grip of the scope and enabling gluing of the scope. The mount is milled out of one billet of material instead of being screwed together from small parts.



Scope Rotation

Patent pending solution for indexing the rotation of the scope, using an included tool/gauge to index the scope correctly to the mount and gun. Important since an incorrectly indexed scope unintentionally will also have a sideways adjusted point of impact and since it will be adjusted sideways when it is adjusted for elevation.



Mounting Placements

Traditionally lasers have been mounted on the forend of the rifle, a solution with drawbacks. For the same reasons you don′t want your barrel to touch the forend, you don′t want the sights to be mounted on the forend. Our mounting system has a minimum of seven interfaces for accessories and the laser can easily be mounted on the mount, giving the advantage of an undisturbed laser and a weight more central on the gun instead of forward.



Accessible and Readable Dials

The rings are cut 45 degrees instead of the usual horizontal, providing several advantages. The screws holding the parts together are not in the way of the knobs, thus the shooter can quickly determine the settings of the knobs. It also gives the shooter a horizontal line that helps the shooter not torotate his gun unintentionally. The rings have index marks on the top and right side, making low knobs more easily readable.



Accessories

Possibility of using various accessories such as angle cosine indicator, back up sights, lasers, illuminators, Night vision mounts etc. With traditional mounts this can be achieved only if there is sufficient space on the middle tube for additional rings, which there rarely is. Ideal Scope Mount Systems have interface surfaces directly on the mount, making it possible to mount accessories either by Picatinny rails or as direct interfaces for certain accessories such as angle cosine indicators and red dot sights. A selection of interfaces for popular accessories are available, and others can be made to specification.



Size:
34mm
MOA:
0 MOA

Reviews

Write a Review
  • 5
    SPUHR is the way to go!!

    Always have been a fan of SPUHR products. Their build quality, ruggedness, attractive and durable appearance has always made them the first choice for me when selecting a scope mount. Needed a QD style mount for my Hensoldt ZF 4-16 to complete my mid-range rig HK MR556. This is my first time using one of there QD removable style mounts. When I received this mount the same inherent qualities of their other products was apparent, with the levers mounting very solidly to the rail. I believe that, if I needed to resort to iron sights, that my zero would reliably be close or on where it was before removal. Also a big fan of the integrated level at the base of the mount. SPUHR does it again with an awesome foundation for your optics platform! Thanks Mile High for your fast shipping as well!
