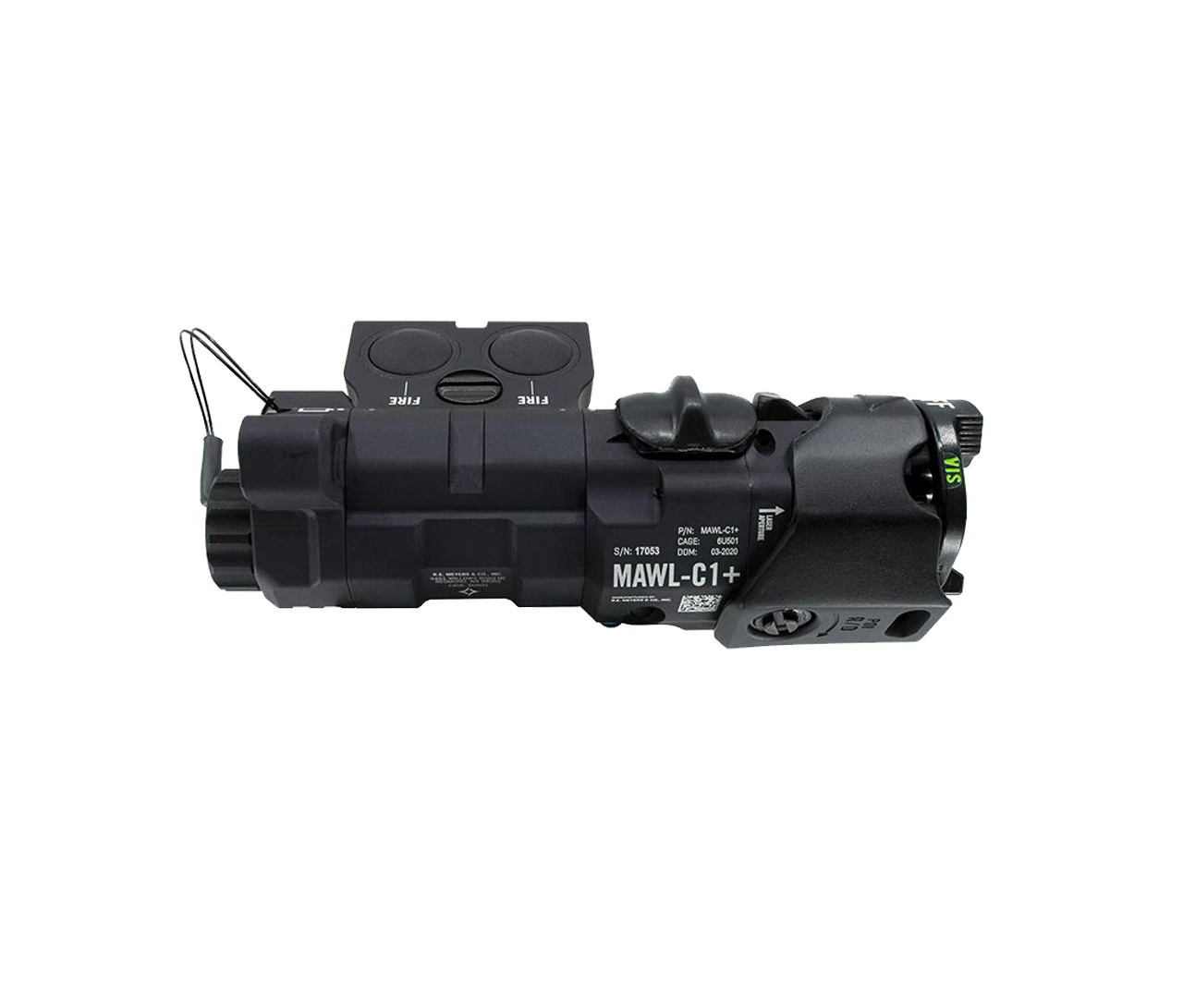

B.E. Meyers: MAWL-C1+, 5mw Green Visible/IR Laser, Black

B.E. Meyers
Current Stock:
Adding to cart… The item has been added
The MAWL®-C1+ is the world’s first commercially available NIR and visible green laser aiming device using Class 1+™ technology. The MAWL®-C1+ retains all of the ergonomic, clarity, modularity, and interface enhancements of the MAWL®-DA, and offers more infrared illumination output power than any FDA Class 3R or Class 1 laser on the commercial market.

The MAWL-C1+ laser device is a modular aiming and illumination tool designed to provide enhanced illumination quality, streamlined user interface, and improved weapons handling ergonomics. The MAWL-C1+ is designed for efficient use of space and improved form-fit-feel over traditional systems. The activation button is low-profile, only 0.37” above the top rail with the bulk of the system moved off-axis from the operator’s grip.The MAWL-C1+ laser device is suited for combat applications in a wide range of environments, from CQB to 1000m+.


Multi-Function Switch

  • Modes and power output are set for optimal illumination, beam size, and clarity at each engagement range.
  • 3 Settings - Short, Medium, and Long
  • Sliding Design, easy to navigate


  • A and B; Immediate Action and Admin Mode for each of the 3 Switch Settings (Short, Medium, Long)
  • A - Broad application setting
  • B - Secondary Function setting

IR Illuminator:

  • Short Range - Optimized for room to room engagements and building interiors, Short Range mode offers smooth, room filling illumination with no discernible speckling or edges and no excessive bloom. The admin function activates a low energy IR illuminator with no pointer for navigating extremely dark areas without discharging an extra IR light.
  • Mid Range mode excels at urban building to building movement and is appropriate for alleyways, streets, building exteriors, and rooftops. Mid Range offers dual illuminators and a pointer; a mid range wide angle flood with a tight hot spot for punching out further distances. Admin function redistributes the illuminator outputs to optimize longer range illumination without switching into Long Range mode.
  • Long range mode pushes out a tight divergence, high power illuminator and pointer for open environment engagement or for punching through strong non-natural ambient illumination. Admin function is a single high power pointer with no illuminator for communications or signaling purposes.

Visible Laser, Green:

  • Short & Mid Range - Short and mid range green settings cycle through increasing output powers for the green pointer. The user can quickly adjust to the correct output appropriate for day, night, indoor, or outdoor.
  • Long Range - Long range in visible mode is reserved for the highest power green set a different pulse rates for easy identification and communication


Technical Info:

Infrared Pointer Output:

  • Short Range: A, 0.7 mW | B, 0.7 mW
  • Mid Range: A, 0.7 mW | B, 0.7 mW
  • Long Range: A, 0.7 mW | B, 0.7 mW
  • IR Pointer Divergence: 0.5 mrad

Infrared Illuminator Output:

  • Short Range: A, 40 mW at 60 degrees | B, 5 mW at 60 degrees
  • Mid Range: A, 80 mW at 16 & 50 mW at 4 degrees | B, 40 mW at 16 & 50 mW at 4 degrees
  • Long Range: A, 50 mW at 4 degrees | B, n/a

Visible Green:

  • Short Range: A, 5 mW | B, 1 mW range
  • Mid Range: A, 5 mW | B, 5 mW range
  • Long Range: A, 6 Hz pulse at 5 mW | B, 5 mW
  • Visible Pointer Divergence: 0.5 mrad


  • WEIGHT: 10.4 oz w/battery
  • DIMENSIONS: 5.5" L x 2.8" W x 2" H
  • WAVELENGTH: NIR, Visible green
  • POINT RANGE: Varied
  • FLOOD RANGE: Varied
  • MAX OUTPUT: Varied
  • POWER SOURCE: One (1) 3V CR123A
  • HOUSING: 6061-T6 Type II
  • AZIMUTH & ELEVATION: 0.3 mrad / 1.03 MOA per click



  U.S. Government Export Restriction

This item is restricted for export by the State Department and Department of Commerce. Make sure you understand all ITAR laws. ITAR Information / ITAR Form
