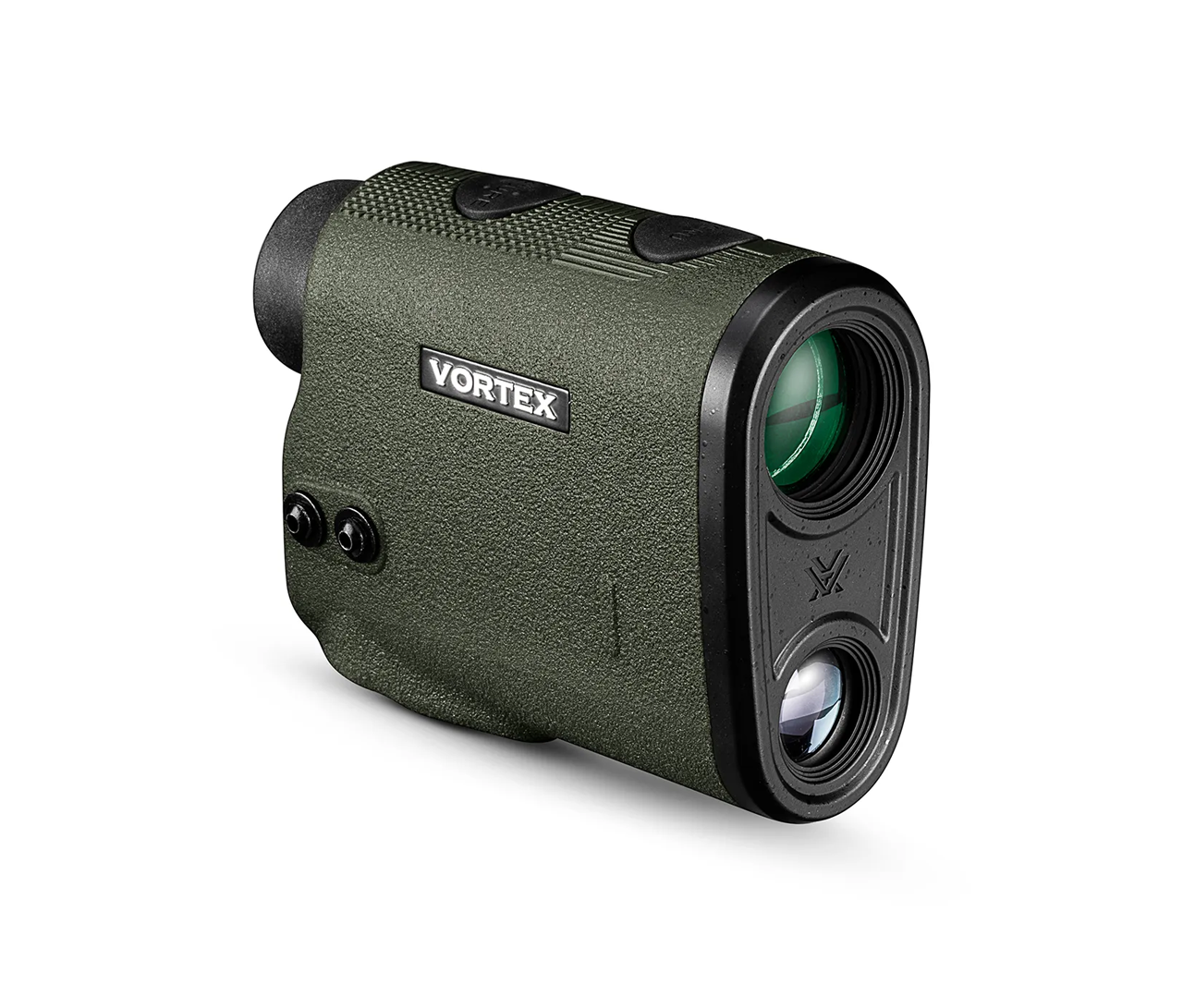

Vortex: Diamondback® HD 2000

• Ranging Modes: Horizontal Component Distance (HCD): Displays the slope angle compensated distance to the target.

• Line of Sight (LOS): Displays the actual line of sight range.

• Scan Feature: Displays continuous distance readings while panning across a landscape.

• Target Modes:

  • Normal Mode: The standard mode providing the target's range with the strongest range result. Recommended for most situations.

  • Last Mode: Displays the farthest distance when ranging. Ideal for ranging a specific target behind a group of objects like brush, trees, rocks, etc.

• HD Optical System: Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration, and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission.

• XR™ Lens Coatings: Premium anti-reflective coatings on all air-to-glass surfaces provide superior light transmission for exceptional clarity and low-light performance.

• ArmorTek®: Ultra-hard exterior lens coatings defend against scratches, oil, and dirt..

• Rubber Armor: Provides a secure, non-slip grip, and durable external protection.

• Red OLED Display: Optimized for low light.

• Ranging Format: Range in yards or meters.

• Diopter: Adjusts for differences in a user's eyes. Located on eyepiece.

• Tripod Adaptable: Allowing use on a tripod or car window mount.

• Waterproof: Designed to withstand harsh weather conditions.

• Shockproof: Designed to withstand the highest levels of impact.

Specifications:

• Magnification: 7x

• Objective Lens Diameter: 24 mm

• Reticle: HCD Corrected Shoot-To Range

• Eye Relief: 16.0mm

• Angular Field of View: 6.4º

• Linear Field of View: 335' @ 1000 yds

• Range Reflective (yards): Up to 2,000 yds.

• Range Tree (yards): Up to 1,800 yds.

• Range Deer (yards): Up to 1,400 yds.

• Min Range: 5 yds.

• Accuracy: 1 yds. @100 yds.

• Length: 4.1"

• Height: 3.1"

• Width: 1.8"

• Weight: 7.6 oz.

• Max Angle Reading: +/- 60º
