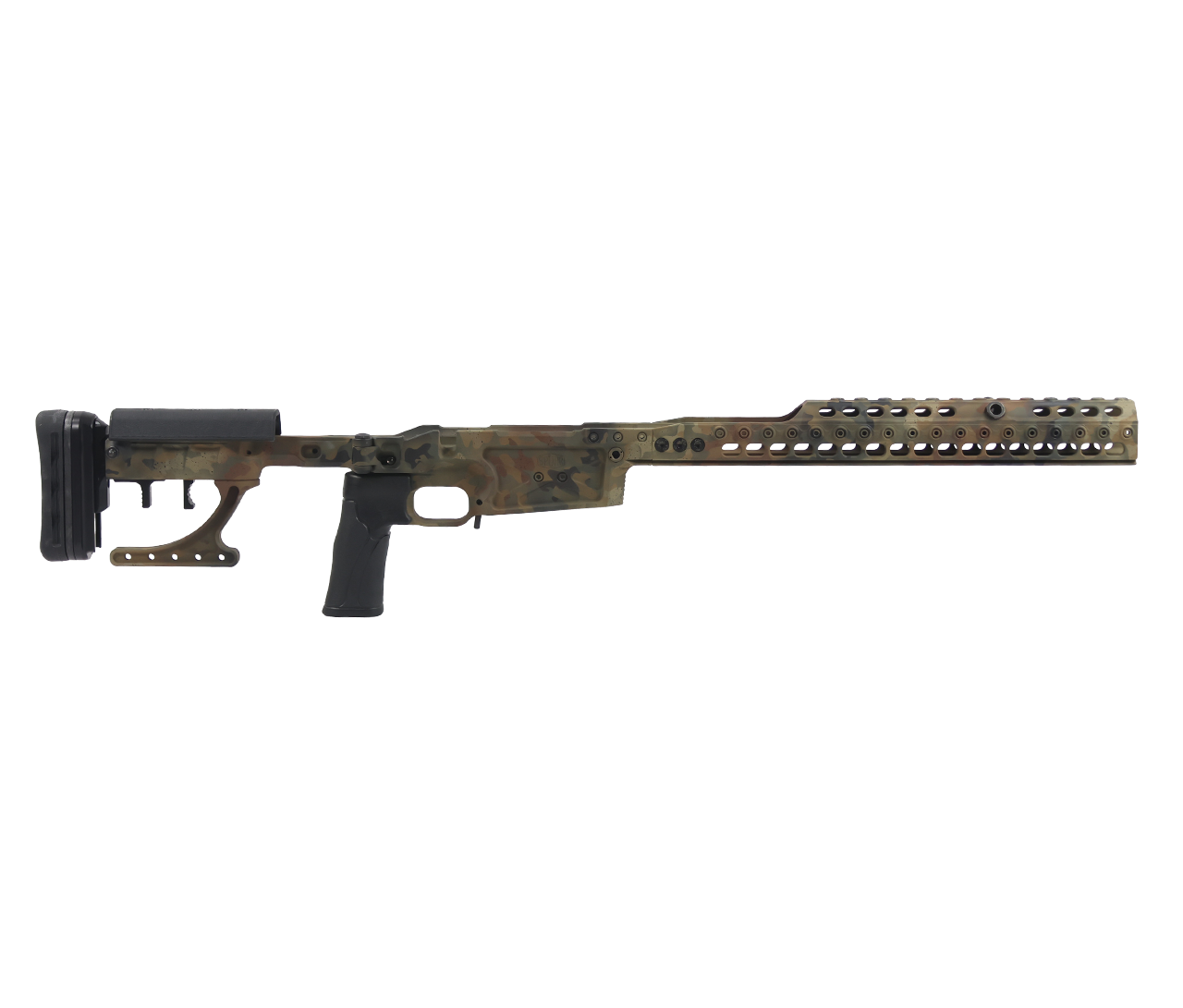

Spuhr: SICS - Spuhr Ideal Chassis System, Lurk Mud & Blood, 16" - Rem 700 S/A

MHSA X RAVEN RIFLES - CUSTOM CERAKOTE PATTERN - LURK MUD & BLOOD

Spuhr® Ideal Chassis System™ - Modular Chassis System with Quick-Adjustable LOP and Recoil Pad Height for Proper Eye-Relief when Moving Between Different Shooting Positions.

Optimized for Remington 700 Short Action

16" Forend for barrel profiles up to Heavy Varmint profile. Features Spuhr Interfaces™ along the top of the forend for use with NV devices and illuminators, etc.

Will also fit short actions from:

• Impact Precision
• Mack Bros
• Vudoo Gun Works

Specifications:

• Length: 975 mm/38.4” (685 mm/27.0” folded)
• LOP: 330 mm/13" (minimum)
• Width: 48.5 mm/1.9”
• Height: 180 mm/7.1”
• Weight: 2.37 kg/5.22 lb
• Forend: 406 mm/16.0”
• Color: MHSA X RAVEN RIFLES CUSTOM CERAKOTE PATTERN - LURK MUD & BLOOD

The Spuhr® Ideal Chassis System™ (SICS™) is a modular chassis system, designed to provide a rigid support of the barreled action for improved accuracy.

The SICS™ features:

• Aircraft-grade aluminum alloy construction
• Folding stock assembly with adjustment for solid lockup
• Quick-adjustable length-of-pull (50 mm/1.97” travel) and recoil pad height (32 mm/1.25”) – toolless and without play
• Height and length-adjustable cheek piece
• Length-adjustable proprietary pistol grip (8 mm/0.32” travel, AR-compatible)
• 16” Spuhr Interface™ forend with integrated ARCA Swiss rail and QD sling cups
• AICS pattern magwell - not for AI AX magazines
• Built-in barricade stop

Note: Actions with 60-degree bolt throw may not allow the stock to be folded over the closed bolt. Due to dimensional variances, some recoil lugs will require fitting.
Max barrel diameter at the shank: 32 mm/1.25".
Clearance between the front of the action and the handguard is approximately 130 mm/5.11" and may require the use of a 38 mm/1.5" high mount.
