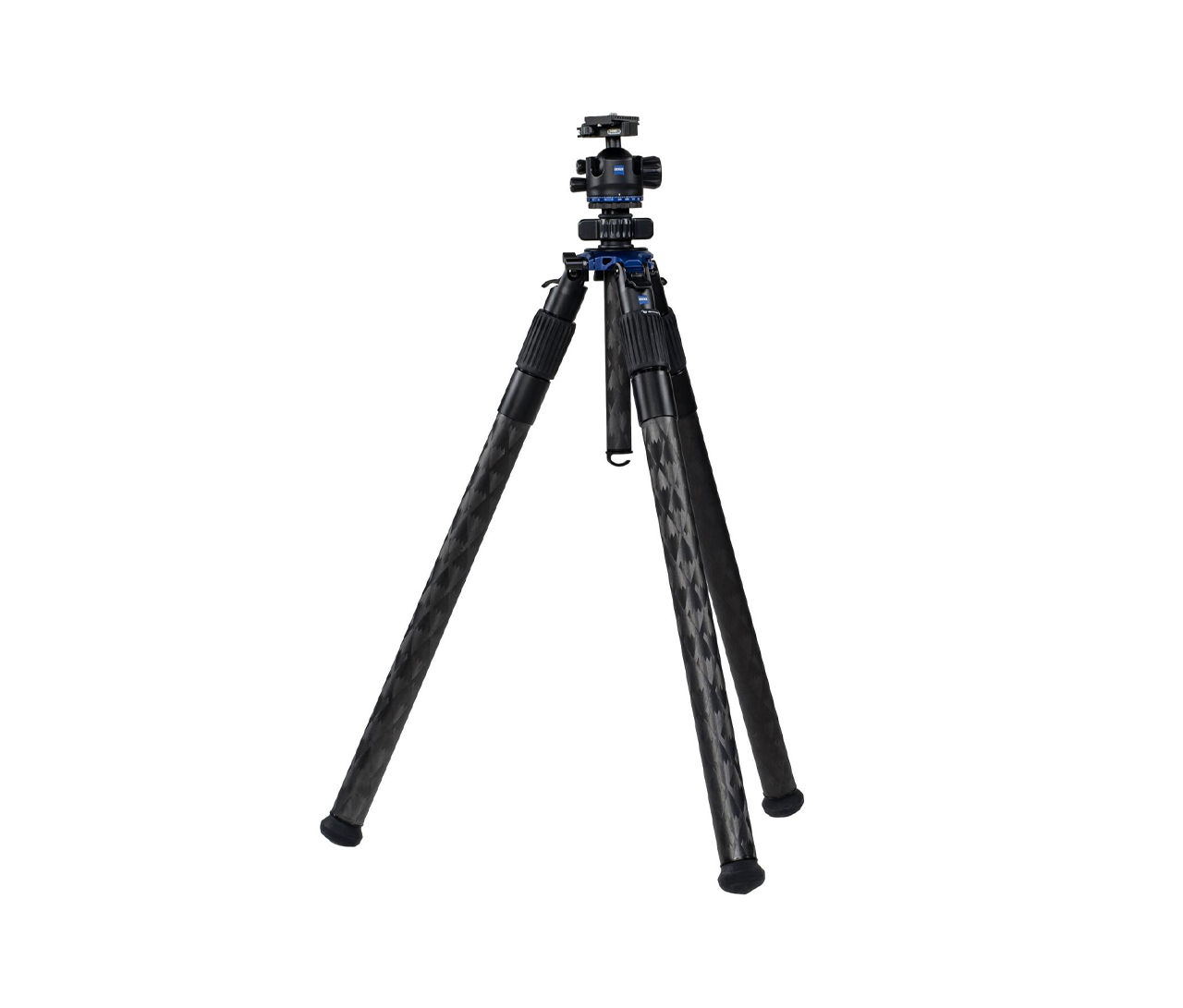

Zeiss: Max-Duty L Kit, 55mm Ball Head

In precision rifle competition, it comes down to the final score and time of completion to determine the winner. There are no excuses! Knowing this, ZEISS introduces the Pro-Series Tripod Kit – MAX-DUTY model. It offers massive 44 mm diameter, 10-layer carbon fiber legs, coupled with an exclusive and highly innovative single-point leg adjustment system for fast deployment and stowing of the three-section leg(s). This saves approximately 7-15 seconds of valuable set-up time for each respective stage of the competition.

The MAX-DUTY L comes with Ballhead L-55 (Low Profile), allowing adjustments up to 90 degrees. The lower profile of the head provides more overall stability. It is 3 cm | 0.8 inches shorter at full length than the V model, and weighs 0.2 kg | 0.5 lbs less.

Features:

• Exceptional Stability:

  • Optimized 44 mm carbon-fiber leg diameter (36/40/44 mm)

  • Large, thread-in rubber feet for stay-in-place footing

  • Multi-angle leg positions consisting of 24, 55, and 85 degrees

  • Multiple adjustments for hassle-free stability

• Fast & Easy Setup:

  • Inverted 3-section leg design for ultimate compactness

  • Single-point leg adjustments with extended Twist-Locks

  • Modular, open apex system for maximum versatility

  • Removable through-the-center column for easy height adjustments

  • Easy-press leg adjustment mechanism

• Robust Design:

  • Machined aluminum frame and joints

  • Black, anodized finish

  • 10-layer, matrix-pattern, heavy-duty carbon fiber legs

  • Laboratory and field tested via thousands of cycles and various extreme environmental conditions

• Secure Connection:

  • Arca-Swiss top mounting system

  • 3/8” Thread-on head

  • 1/4-20 extended balance plate with rubberized anti-slip strips

  • Strong, adjustable, ergo-friendly clamps and knobs

• What's included in the kit?:

  • MAX-DUTY Tripod

  • Ballhead V-60 or Ballhead L-55

  • Removable Center Column

  • Flat Plate Adapter with 3/8” Stud

  • 1/4-20 Extended Adapter Plate

  • Tripod Bag with Shoulder Strap

  • Tool Kit

  • Spiked Feet

  • Quick Guide

Specifications:

• Head Type: Ballhead L-55

• Weight (No Head, No Center Column): 4.0 kg | 9.0 lbs

• Weight (With Head, No Center Column): 5.0 kg | 11.0 lbs

• Weight (With Head, With Center Column): 5.3 kg | 11.8 lbs

• Extended Height (No Head): 173 cm | 67.9"

• Extended Height (With Head): 184 cm | 69.7"

• Compressed Length (With Head, With Center Column): 99 cm | 38"

• Maximum Load: 30 kg | 66 lbs

• Leg Tube Diameters: 44 mm | 40 mm | 36 mm

• Leg Angles: 24° | 55° | 85°

• Leg Sections: 3

• Locking Mechanism: Twist Lock

• Center Column: Extendable and Detachable
