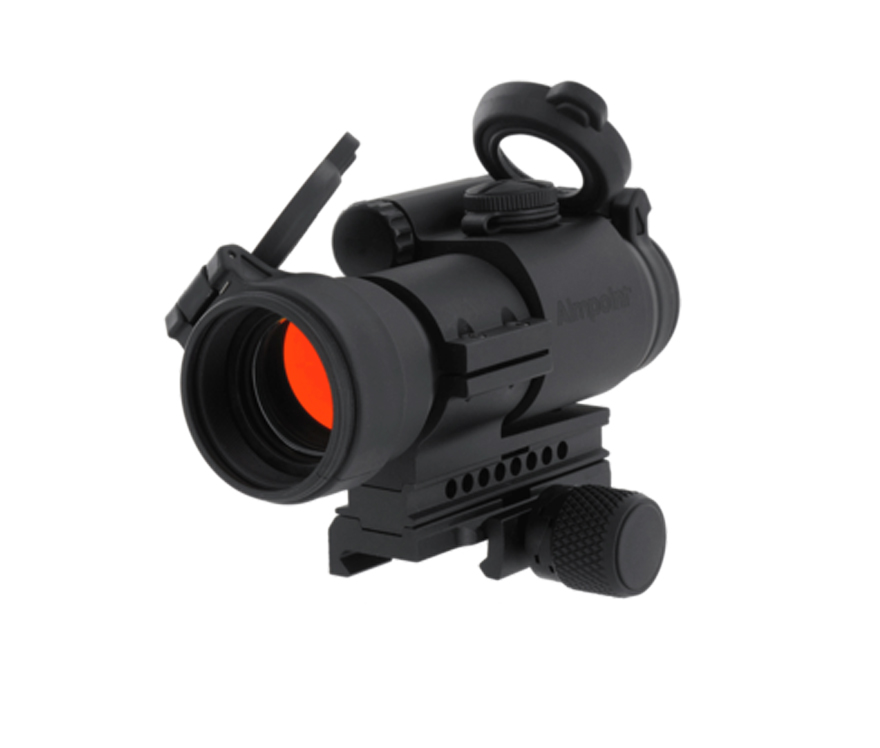

AimPoint: Patrol Rifle Optic
AimPoint
$497.00
(No reviews yet)
Write a Review
AimPoint
AimPoint: Patrol Rifle Optic
The Aimpoint Patrol Rifle Optic is designed with input from a distinguished group of current and former professionals, the Patrol Rifle Optic incorporates many never before seen features to maximize this sight's performance within the challenging conditions faced by modern law enforcement.
The Aimpoint® PRO sight comes in a ready-to-go kit at a budget friendly price, a concept that appeals strongly to Law Enforcement units.
| OPTICAL SPECIFICATIONS |
|---|
| Operating principle: Reflex Collimator sight with LED |
| Optical magnification: 1x |
| Aiming dot size: 2 MOA |
| Dot intensity: Visible against a background luminance of 0,1 to 55 000 lx |
| Optical signature: No optical signature is visible at 10 meter distance, front side, on appropriate settings with NVD 3 |
| Dot color: Peak Wavelength: 650 ± 10 nm |
| NVD compatible: Yes |
| Optical coating: Anti-reflex, all surfaces and multi-layer. NVD-Compatible 1, 2, 3 |
| Clear aperture: 26 mm |
| Eye relief: Unlimited |
| POWER SOURCE |
|---|
| Battery type: 3V lithium battery, type 2L76 or DL1/3N. |
| Battery life - Day time use: 30 000 h continuous (pos. 7 of 10) |
| Power intensity: 4 NVD and 6 Daylight, of which 1 extra bright |
| PHYSICAL SPECIFICATIONS |
|---|
| Length sight only: 115 mm (4 1/2") |
| Length std conf: 130 mm (5 1/8") |
| Width: 55 mm (2 3/16") |
| Height sight only: 55 mm (2 3/16") |
| Height std conf: 67 mm (2 5/8") |
| Weight sight only (incl battery): 220 g (7,8 oz) |
| Weight std conf: 330 g (11,6 oz) incl. Lens Covers, Mount, and Spacer |
| Housing material: High Strength Aluminum |
| Housing finish and color: Matte black |
| Material mount and spacer std conf: High Strength Aluminum |
| Surface treatment: Hard anodized, matte |
| Height of optical axis - sight and mount: 30 mm (1 3/16") over top surface of Picatinny/Weaver Rail |
| Height of optical axis - sight, mount and Micro spacer XX: 39 mm (1 9/16") over top surface of Picatinny/Weaver Rail |
| Adjustment: Range ±1 m at 100 meters (±1 yds at 100 yds) in windage and elevation, 1 click = 13 mm at 100 meters = 10 mm at 80 meters = 7/16" at 100 yds |
| ENVIRONMENTAL SPECIFICATIONS |
|---|
| Temperature range operation: -45°C to 71°C (-49°F to 160°F) |
| Temperature range storage: -51°C to 71°C (-60°F to 160°F) |
| Temperature shock: Operable after a temperature shock between -45°C and +71°C. Duration: 4h of Hot +71°C, 4h of Cold -45°C. Cycling: 3 times |
| Humidity: Operates despite humidity. Limits: RH: 95%, Temp: 20ºC to 50 ºC, cyclic |
| Immersion, static: Operates after immersion until temperature is stabilized + 10°C compared to the water. Limits: Depth: 45 m (150 ft.) |
| Shock: Operable before and after shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction, Z-axis: 40g ±4g, 11 ±1ms, 2 shocks in each direction. Functional during exposure (room temperature) |
| Vibration: Operates despite vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min |
| Chemical resistance: Withstands occasional contamination of: Hydraulic oil (FSD 8407, Tryckolja 021), Lubricating oil (FSD 8127, Motorolja 5W/30), Lubricating oil (FSD 8220, Smörjfett 220), Lubricating oil (Break Free), Fuels (FSD 8612, Diesel fuel oil), Solvents/cleaning (FSD |
- Max Magnification:
- 1X
