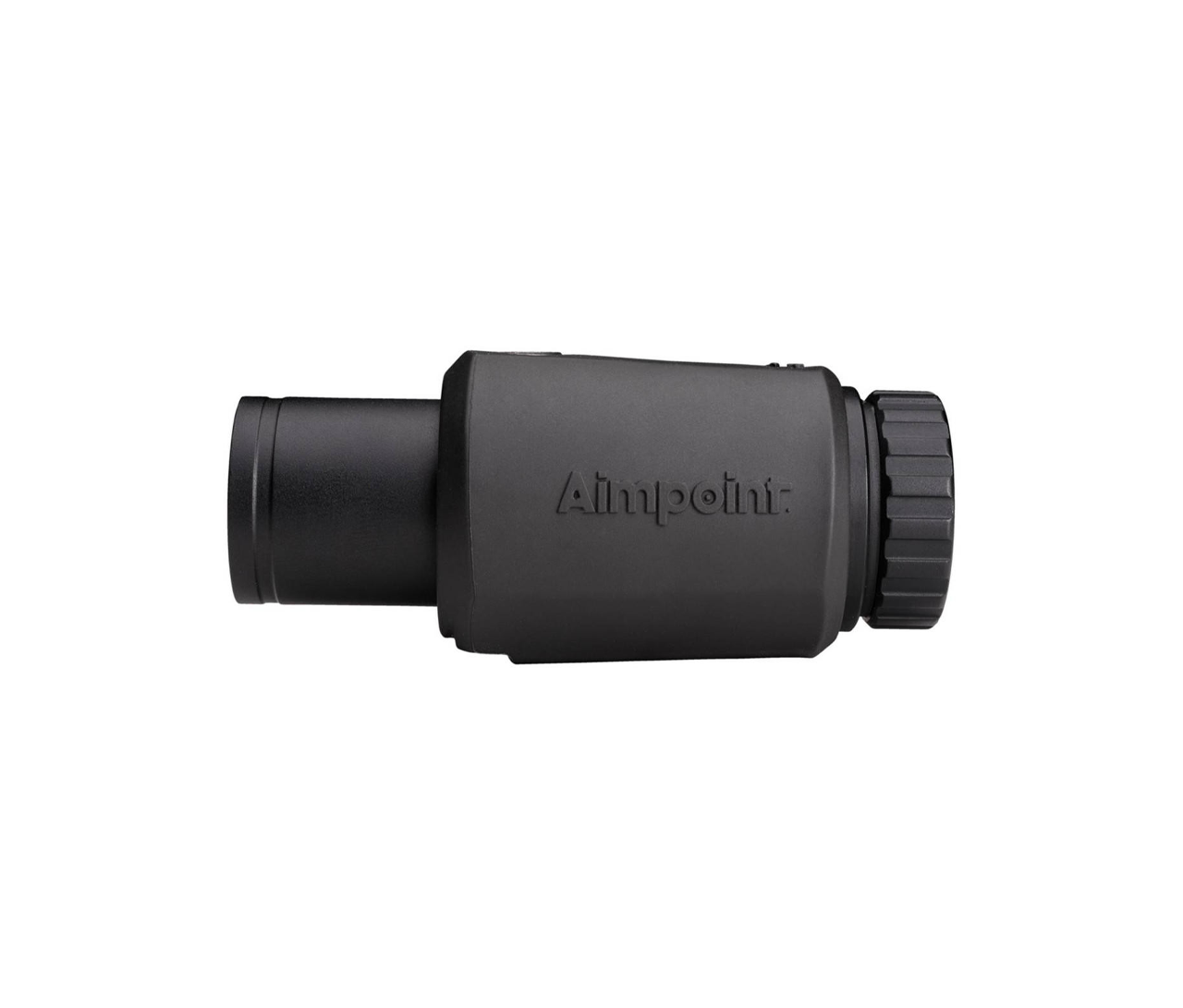

AimPoint 200273: 3X-C™, Magnifier - No Mount

The Aimpoint® 3X-C Magnifier is a premium optic designed to increase capabilities for observation or target acquisition at longer distances. Whether it is paired with an Aimpoint red dot sight or used as a hand-held monocular, the 3X-C™ provides a crisp sight picture with a generous field of view. Utilizing the red dot in Aimpoint sights as the aiming reticle eliminates the need for re-zeroing when shifting between non-magnified and magnified aiming. This rugged magnifier module is fully waterproof and can withstand temperatures ranging from -31°F to +131°F. A shock-absorbing protective rubber cover creates the ideal ergonomic grip when used as a hand-held device. Features include a 6-degree field of view (FOV) and a variable dioptric setting (-2 to +2), allowing the magnifier to be adjusted to the individual user’s eye. The 3X-C Magnifier can be used with Aimpoint Micro T-2/H-2 and Comp™ series sights. Offered at an entry-level price point, the 3X-C is the ideal solution to increase your capabilities without sacrificing the advantage of extremely quick target acquisition.

Features:

• 3X optical magnification

• Compatible with Aimpoint red dot sights for longer range aiming or observation

• Variable (-2 to + 2) dioptric setting

• No mount included

• Also serves as a handheld 3X monocular

• No re-zeroing needed when shifting between non-magnified and magnified aiming – utilizes the red dot in Aimpoint sights as the aiming reticle

• Ergonomic design for sure grip when used as a handheld observation tool

• Shockproof and Waterproof

• Legendary Aimpoint ruggedness at an entry level price point

• Screws and allen key included

• Field of view (FOV): 6°

• Eye relief: 2.2in (56mm)

• Submersible to 2 Feet (.5 meters)

• Temperature range -31°F to +131°F (-35°C to +55°C)

• Weight 7.8 oz / 220g

Specifications:

• Length (magnifier only): 103 mm (4.1 in)

• Width (magnifier only): 45 mm (1.8 in)

• Height (magnifier only): 45 mm (1.8 in)

• Weight (magnifier only): 220 grams (7.8 oz) including rubber cover

• Housing Material: Aluminum
• Housing Finish & Color: Matte grey to black

• Surface Treatment: Protective rubber cover

• Lens Covers: Not included

• Tube Diameter: 30 mm / 1.2 in

• Material Mounting Solution: Aluminum

Environmental Specifications:

• Temperature Range Operation: -35°C to +55°C / -31°F to +131°F

• Temperature Range Storage: -35°C to +55°C / -31°F to +131°F

• Temperature Shock: Operable after a temperature shock between -25°C to +40°C / -13°F to +104°F

• Humidity – Operable During & After Humidity Limits:

• Operable during and after Humidity. Limits: RH: 95%,

• Temp: +20°C to +50°C (+68°F to +122°F), cyclic

• Submersible: to a depth 0.5 m (2 ft.)
• Shock: Withstands shock. Limits X-axis: 500 g. 0.7 – 1.1 ms (3 shocks), Y-axis: 40g +4g, 11 +1 ms (2 shocks) in each direction, Z-axis: 40g +4 g, 11 +1ms

• Vibration: Withstands Vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction.

• Radioactive Material: None

• Laser: None
