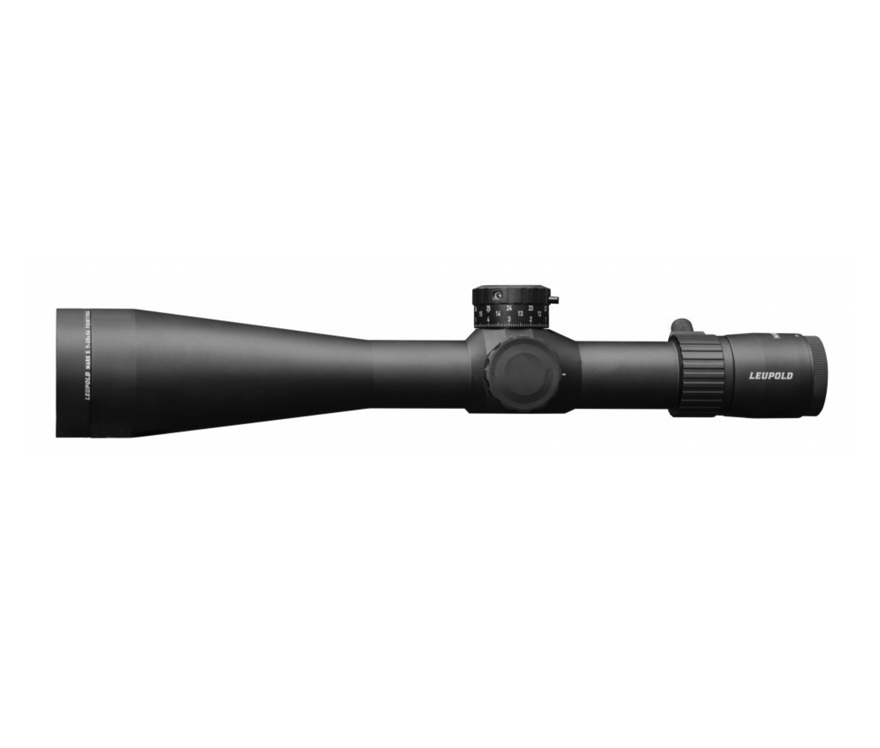

Leupold 180292: MARK 5HD 7-35X56 M1C3, FFP, PR2-MOA

Leupold
SKU:
180292
UPC:
30317027537
Availability:
All orders for optics and related items will be verified before shipment.
$2,399.99
Current Stock:
Adding to cart… The item has been added

Discount Pricing Program - LE/MIL, First Responders & Other Qualified Professionals. Please call us at 303.255.9999.

New MHSA riflescope guarantee: If you're not happy we're not happy. Customers have 30 days to exchange, must have been purchased from Mile High Shooting with matching serial numbers. Must be in "like new" condition, with box and all paperwork, free of damage. Customers pay shipping both ways, one exchange per purchase.

The Mark 5HD™ 7-35x56mm riflescope gives you the extra magnification you need to take advantage of the distances that modern precision rifles can shoot. With the right glass, no target is out of reach. And with the same dimensions and only 3 more ounces than its 5-25x56mm counterpart, you don't have to pay a weight penalty for the extra magnification.

Built around Leupold’s Professional-Grade Optical System, the Mark 5HD 7-35x offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter in the field.

Get behind the Mark 5HD and you'll see the difference. From the superior edge-to-edge clarity and extreme low-light performance to the versatility of its multiple reticle options, this rugged scope will give you an advantage at the range or in the field. With three revolutions of elevation adjustment, the Mark 5HD was built to max out the performance of the latest long-range rifles and ammo. It's ergonomically designed with more tactile, audible click adjustments, larger numbers, and a high-speed throw lever, so you can put accurate fire downrange faster.

Its unique combination of features, durability, and professional-grade optical performance guarantees that the Mark 5HD can handle any challenge you throw at it. It's 100% waterproof and fogproof, and like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed to perform for life.



A versatile 5:1 zoom ratio gives you 5 times more magnification at high power than at low power (model magnification ranges may be available in powers of 5x: 1-5, 2-10, 3-15, 4-20, etc.), so you can adjust your magnification to find the perfect balance between magnification and field of view for any situation. The larger the zoom ratio, the more versatile one scope can be.

Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.

The ZeroLock® system eliminates accidental dial movement by locking it in place.

The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.

The side focus adjusts the scope's parallax, making the reticle clearer and have less perceived movement when you're shooting at different distances.

These low-profile dials are available on select models and provide up to 71.5MOA of adjustment in 3 revolutions and 1/4 MOA clicks. Visual and tactile revolution indicators ensure you don’t get lost in the travel. The ZeroLock® feature prevents inadvertent adjustments and ensures accurate return to zero.

Our high-quality Alumina® flip-back lens covers thread onto the scope to protect the lens from moisture, dirt, and debris.

Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.





|A| Total Length (in) - 15.7    |B| Total Mounting Space (in) - 6.2    |C| Front Mounting Space (in) - 2

|D| Rear Mounting Space (in) - 2    |E| Eyepiece Length (in) - 3.3    |F| Objective Length (in) - 6.2

|G| Objective Diameter (in) - 2.5    |H| Eyepiece Diameter (in)- 1.8    |K| Maintube Diameter (mm) - 35



Specifications

Finish: Matte

Adjustable Objective: No

Reticle Focal Plane: First Focal Plane

Elevation Adjustment Type: M1C3

Locking Dial: Yes

Revolution Indicator: Yes

Rezero Type: Set Screw

Windage Adjustment Type: Capped

Custom Dial System (CDS): No

BDC Dial Included: No

Reticle Type: First Focal Plane

Reticle: FFP PR2-MOA

Light Management System: Twilight Max HD

Magnification Type: Variable

Illuminated: No

Nightvision Compatible Illumination: No

Daylight Bright Illumination: No

Motion Sensor Technology (MST): No

Electronic Reticle Level: No

Guard-ion Lens Coating: No

Weight (oz): 30

Elevation Adjustment Value per Click : 1/4MOA

Elevation Adjustment Range (MOA): 120

Elevation Adjustment Range (MIL): 35

Elevation Adjustment Range (cm @ 100m): 349

Elevation Adjustment Per Revolution: 25 MOA

Elevation Dial Travel Limit: 71.5MOA

Windage Adjustment Value per Click: 1/4MOA

Windage Adjustment Range (MOA): 60

Windage Adjustment Range (MIL): 17

Windage Adjustment Range (cm @ 100m): 175

Windage Adjustment Per Revolution: 15 MOA

Magnification Max: 35

Magnification Min: 7

Objective Lens Diameter (mm): 56

Linear FOV Low Mag (ft@100yds): 20.4

Linear FOV High Mag (ft@100yds): 4.2

Angular FOV Low Mag (Degrees): 3.9

Angular FOV High Mag (Degrees): .8

Eye Relief Low Mag (in): 3.6

Eye Relief High Mag (in): 3.8

Minimum Parallax-Free Distance (yd): 50





  U.S. Government Export Restriction

This item is restricted for export by the State Department and Department of Commerce. Make sure you understand all ITAR laws. ITAR Information / ITAR Form



  Bank of 1889 Financing (This option is for orders of $2000 or more.)

We offer financing through the Bank of 1889. Financing Information.





Max Magnification:
35X
Reticle Position:
First Focal Plane
Adjustment:
MOA
