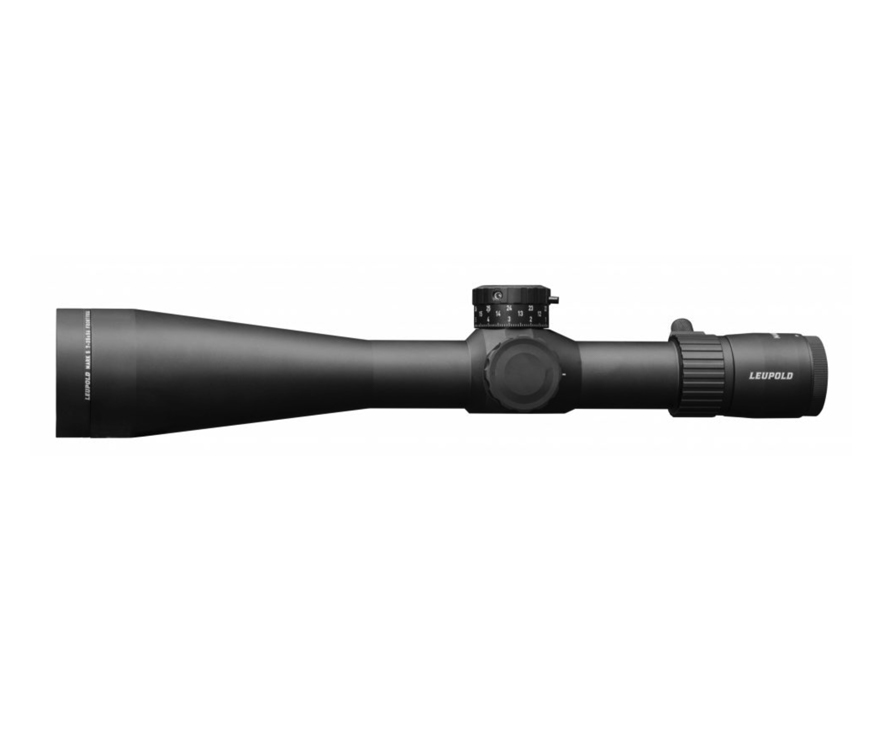

The Mark 5HD™ 7-35x56mm riflescope gives you the extra magnification you need to take advantage of the distances that modern precision rifles can shoot. With the right glass, no target is out of reach. And with the same dimensions and only 3 more ounces than its 5-25x56mm counterpart, you don't have to pay a weight penalty for the extra magnification.
Built around Leupold’s Professional-Grade Optical System, the Mark 5HD 7-35x offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter in the field.
Get behind the Mark 5HD and you'll see the difference. From the superior edge-to-edge clarity and extreme low-light performance to the versatility of its multiple reticle options, this rugged scope will give you an advantage at the range or in the field. With three revolutions of elevation adjustment, the Mark 5HD was built to max out the performance of the latest long-range rifles and ammo. It's ergonomically designed with more tactile, audible click adjustments, larger numbers, and a high-speed throw lever, so you can put accurate fire downrange faster.
Its unique combination of features, durability, and professional-grade optical performance guarantees that the Mark 5HD can handle any challenge you throw at it. It's 100% waterproof and fogproof, and like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed to perform for life.
A versatile 5:1 zoom ratio gives you 5 times more magnification at high power than at low power (model magnification ranges may be available in powers of 5x: 1-5, 2-10, 3-15, 4-20, etc.), so you can adjust your magnification to find the perfect balance between magnification and field of view for any situation. The larger the zoom ratio, the more versatile one scope can be.
Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.
The ZeroLock® system eliminates accidental dial movement by locking it in place.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
The side focus adjusts the scope's parallax, making the reticle clearer and have less perceived movement when you're shooting at different distances.
Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
|A| Total Length (in) - 15.7 |B| Total Mounting Space (in) - 6.2 |C| Front Mounting Space (in) - 2
|D| Rear Mounting Space (in) - 2 |E| Eyepiece Length (in) - 3.3 |F| Objective Length (in) - 6.2
|G| Objective Diameter (in) - 2.5 |H| Eyepiece Diameter (in)- 1.8 |K| Maintube Diameter (mm) - 35
Adjustable Objective: No
Elevation Adjustment Type: M5C3
Locking Dial: Yes
Revolution Indicator: Yes
Rezero Type: Set Screw
Windage Adjustment Type: Capped
Custom Dial System (CDS): No
Custom Dial Compatible: Yes
BDC Dial Included: No
Reticle Type: Illuminated
Reticle: Illum. FFP TMR (Mk)
Battery Type: CR2032
Switch Type: Dial
Daylight Bright Illumination: No
Electronic Reticle Level: No
Guard-ion Lens Coating: No
Weight (oz): 33
Elevation Adjustment Value per Click: 0.1Mil
Elevation Adjustment Range (MOA): 100
Elevation Adjustment Range (MIL): 29
Elevation Adjustment Range (cm @ 100m): 291
Elevation Adjustment Per Revolution: 10.5 MIL
Elevation Dial Travel Limit: 30MIL
Windage Adjustment Value per Click: 0.1Mil
Windage Adjustment Range (MOA): 50
Windage Adjustment Range (MIL): 15
Windage Adjustment Range (cm @ 100m): 145
Windage Adjustment Per Revolution: 10 MIL
Magnification Max: 35
Magnification Min: 7
Objective Lens Diameter (mm): 56
Linear FOV Low Mag ([email protected]): 14.7
Linear FOV High Mag ([email protected]): 3
Angular FOV Low Mag (Degrees): 2.8
Angular FOV High Mag (Degrees): .6
Eye Relief Low Mag (in): 3.6
Eye Relief High Mag (in): 3.8
Minimum Parallax-Free Distance (yd): 50
Battery Life (hr), Low Intensity: 1800
Battery Life (hr), High Intensity: 96
Number of Illum Settings: 7
U.S. Government Export Restriction
