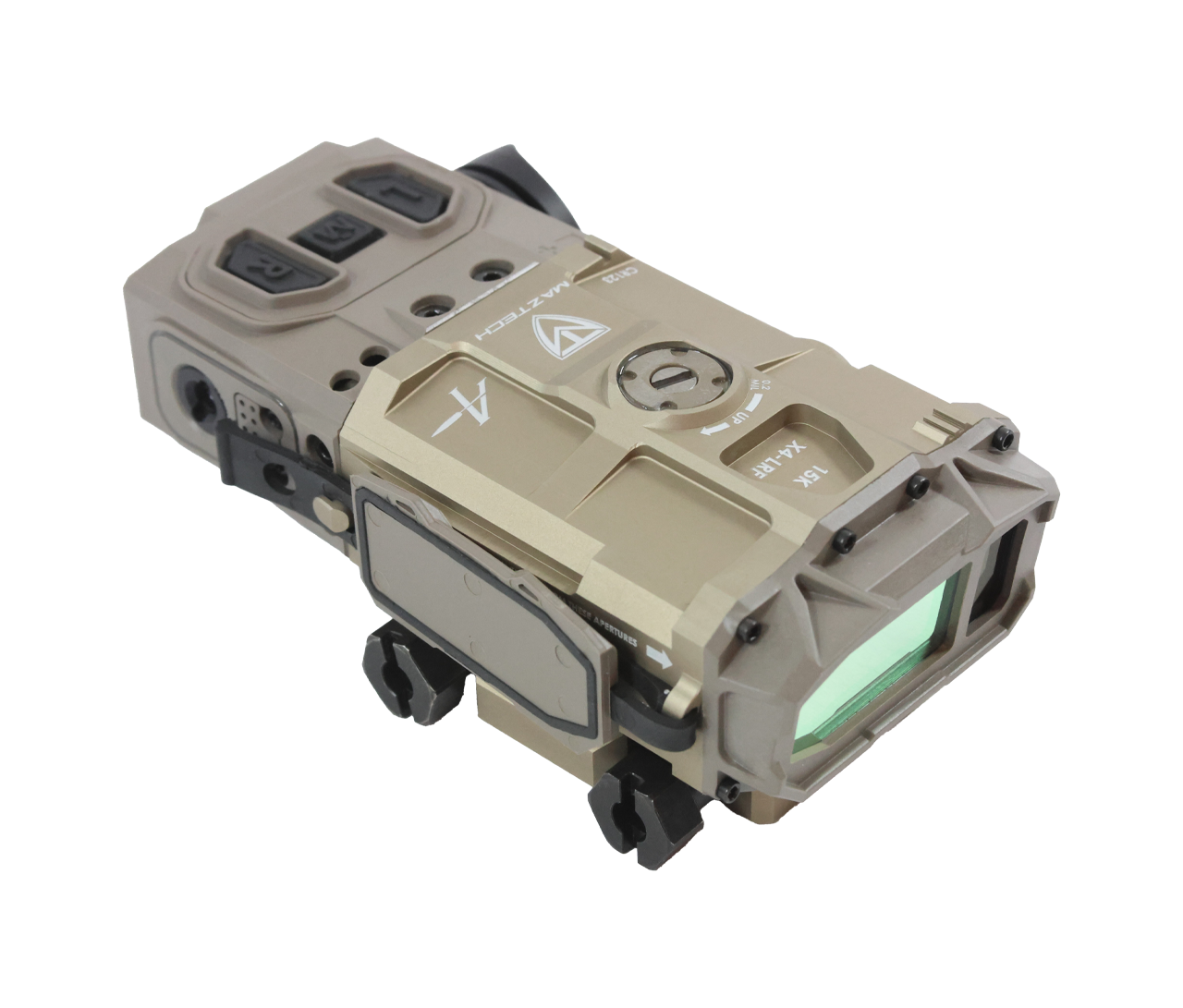

Maztech: X4-LRF 15K, Red/IR Lasers - FDE

The Maztech X4-LRF-15K represents the ultimate in military-grade weapon-mounted laser rangefinder technology, featuring a powerful 1534nm erbium glass laser invisible to night vision devices. With exceptional 15,000-meter ranging capability and integrated Applied Ballistics solver, this professional-grade system delivers unmatched performance for military, law enforcement, and professional applications requiring extended-range precision.

The groundbreaking laser rangefinder with precise ranging and an integrated ballistic solver.

The X4-LRF™ is a high-performance ranging laser with co-aligned visible and infrared aiming lasers.

Combined with an integrated Applied Ballistics® solver and on-board environmental and motion sensors, it gives you a complete ranging and ballistics solution all in one compact, rugged package.

Features:

• High-performance Q-switched Erbium glass laser with 1534nm wavelength

• Ranging laser invisible to night vision devices for tactical advantage

• Best-in-class APD (Avalanche Photodiode) photoreceiver for maximum sensitivity

• Single-pulse and multi-pulse ranging modes with ~40kW optical pulse power

• Integrated Applied Ballistics® solver with onboard motion and environmental sensors

• Large format OLED display for easy viewing even with polarized glasses

• User-friendly software with optional Smartphone app and library for configuring ballistic profiles

• Co-aligned red visible (660nm) and infrared (842nm) aiming lasers

• Extended range performance: 25-16,400 yards (25-15,000 meters)

• Designed to meet MIL-STD-810 environmental specifications

• Seamless integration with Maztech X4-FCS Fire Control System

• Comes with Captured Aperture Cover, I/O Accessory Port Cover, and 12 inch X4 Low-Profile Remote

Technical Specifications:

• Dimensions: 5.2 x 2.8 x 1.8 in (133 x 72 x 47 mm)
• Weight: 12.9 oz (367 g) with supplied battery
• Battery Type: One CR123 (lithium or supplied rechargeable)
• Battery Life: 10,000+ range events
• Range Performance: 25 - 16,400 yd (25 - 15,000 m)
• Man (0.5 x 1.75 m, 30%, 23 km): 3,800 yd (3,500 m)
• Vehicle (2.3 x 2.3 m, 30%, 23 km): 7,100 yd (6,500 m)
• Rail Mount: STANAG 4694 (Compatible with STANAG 2324 / Picatinny MIL-STD-1913)
• External Color: Flat Dark Earth (FDE)
• Integrated Ballistics: Applied Ballistics® solver with on-board motion and environmental sensors
• Wireless Connectivity: Bluetooth® Low Energy & Ultra-Wideband (UWB). Each can be disabled.
• Visible Aim Laser:

  • Output Power: 4.5 ± 0.4 mW 3R (Safety Class 3R)
  • Beam Divergence: 0.5 ± 0.3 mrad
  • Wavelength: 660 nm (Red)
• IR Aim Laser:
  • Output Power: 0.6 ± 0.1 mW (Safety Class 1)
  • Beam Divergence: 0.5 ± 0.3 mrad
  • Wavelength: 842 nm (NIR)
• Rangefinder Laser:

  • Ranging Mode: Single Pulse / Multi-Pulse (Safety Class 1)
  • Beam Divergence: <1.0 mrad
  • Repetition Rate: Mode dependent, continuous ranging up to 1 Hz
  • Wavelength: 1534 nm
  • Optical Pulse Power: ~40 kW
• Environmental Specifications:

  • Operating Temperature: -40° F to 140° F (-40° C to 60° C). Subject to appropriate temperature-rated battery
  • Mechanical Shock: 1,500 g, 0.5 ms half-sine
  • Immersion: 3 ft (91 cm) of water for 30 minutes

The X4-LRF-15K is a high performance diode-pumped, solid-state laser rangefinder with integrated co-aligned pointers and a built-in weather station. It provides eye-safe laser ranging capability for weapon-mounted solutions with exceptional long-range performance. The onboard Applied Ballistics® solver generates instant firing solutions utilizing comprehensive environmental and motion sensor data, while the optional Maztech Companion app enables quick ballistic profile management for up to 30 custom ammunition profiles.

The X4-LRF-15K includes Maztech's reliable, low-noise, high-gain APD photoreceiver technology. This advanced sensor provides best-in-class sensitivity, enabling exceptional long standoff range performance with reduced laser pulse energy requirements, even in adverse environmental conditions. The 1534nm wavelength offers tactical advantages by remaining invisible to traditional night vision devices.

The X4-LRF comes with an X4 Low-Profile Remote (12" cable length).

The X4-LRF also comes with:

• Rechargeable CR123 battery

• USB-C charging cable

• Lens cleaning cloth

• Drawstring bag

• X4-LRF Alignment Target

• 5/64 Allen Key

• Mini flathead screwdriver

• Bluetooth® USB Dongle

• Quick Start Guide

• User Manual

• Maztech Patch

• Maztech Stickers

Warranty Coverage

3-Year Manufacturer Warranty: Maztech warrants products free from defects in material and workmanship for 3 years from original purchase date. Maztech will repair, replace, or refund defective products at their discretion.

45-Day Return Policy: Original purchasers may return products in unfired condition within 45 days of purchase.

Limitations: Warranty excludes damage from modifications, misuse, improper installation, Acts of God, and consumable parts like batteries (unless due to manufacturing defects).
