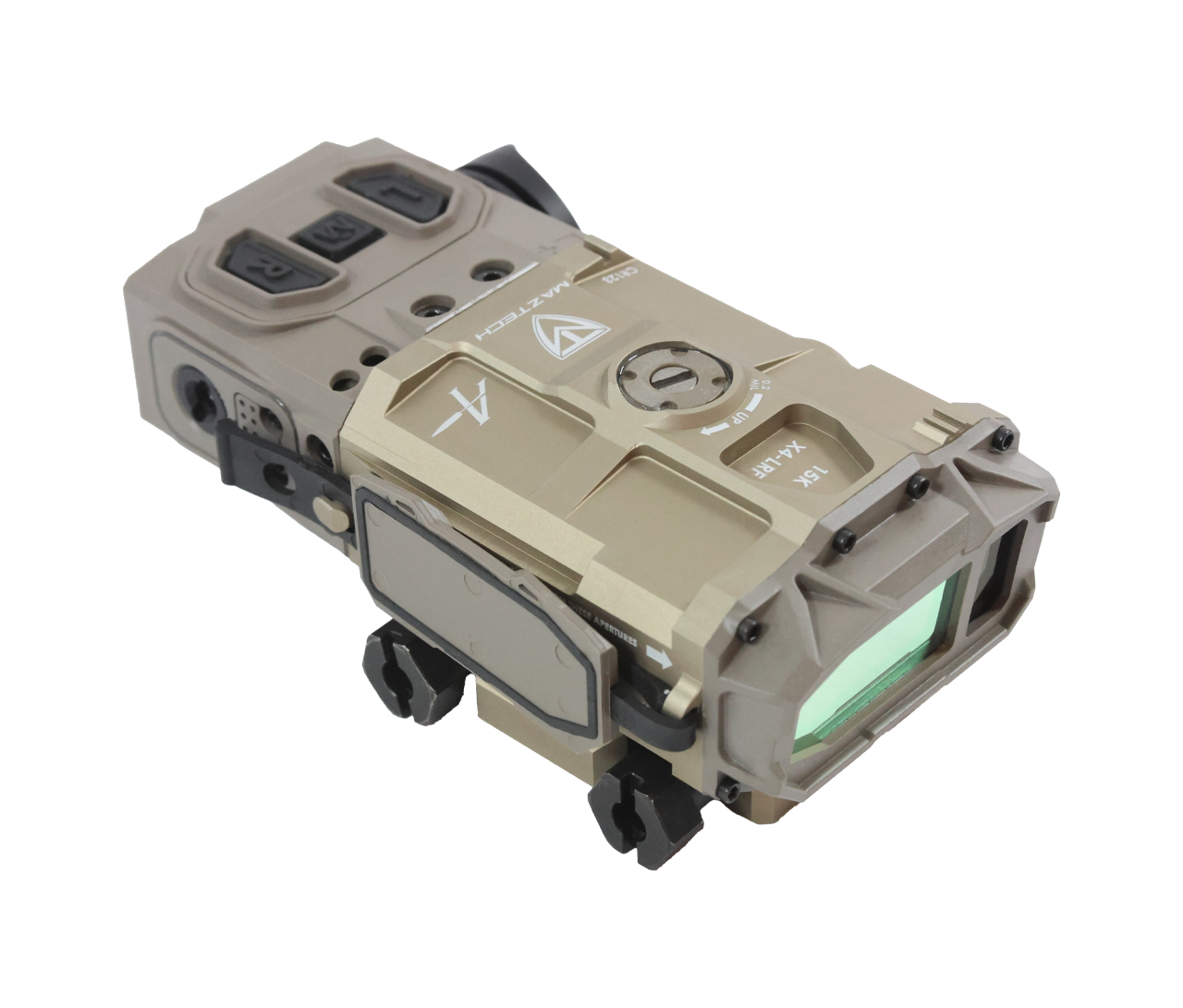

Maztech: X4-LRF 15M, Red/IR Lasers - FDE

The X4-LRF-15M is a high-performance diode-pumped, solid-state laser rangefinder with integrated co-aligned pointers and a built-in weather station. It provides eye-safe laser ranging capability for weapon-mounted solutions. The onboard Applied Ballistics® solver generates an instant firing solution, and the optional Maztech Companion app enables quick ballistic profile management.

The X4-LRF-15M includes Maztech’s reliable, low-noise, high-gain APD photoreceiver. This provides best-in-class sensitivity, allowing for long standoff range performance with less laser pulse energy, even in adverse environmental conditions.

Features:

• High-performance Q-switched Erbium glass laser

• Ranging laser not visible to night vision devices

• Integrated Applied Ballistics® solver with onboard motion and environmental sensors

• Large format OLED display for easy viewing even with polarized glasses

• User-friendly software with optional Smartphone app and library for configuring ballistic profiles

• Designed to meet MIL-STD-810 environmental specifications

• Comes with Captured Aperture Cover, I/O Accessory Port Cover, and 12 inch X4 Low-Profile Remote

Technical Specifications:

• Dimensions: 5.2 x 2.8 x 1.8 in (133 x 72 x 47 mm)

• Weight: 12.9 oz (367 g) with supplied battery

• Battery Type: One CR123 (lithium or supplied rechargeable)

• Battery Life: 10,000+ range events

• Range Performance: 25 - 16,400 yd (25 - 15,000 m)

• Man (0.5 x 1.75 m, 30%, 23 km): 3,800 yd (3,500 m)

• Vehicle (2.3 x 2.3 m, 30%, 23 km): 7,100 yd (6,500 m)

• Rail Mount: STANAG 4694 (Compatible with STANAG 2324 / Picatinny MIL-STD-1913)

• External Color Flat Dark Earth (FDE)

• Integrated Ballistics: Applied Ballistics® solver with on-board motion and environmental sensors

• Wireless Connectivity: Bluetooth® Low Energy & Ultra-Wideband (UWB). Each can be disabled.

• Visible Aim Laser:

  • Output PowerL < 70 mW (Five user-selectable power levels). Safety Class 3B.

  • Beam Divergence: 0.5 ± 0.3 mrad

  • Wavelength: 660 nm (Red)

  • IR Aim Laser:

  • Output Power: < 40 mW (Five user-selectable power levels). Safety Class 3B.

  • Beam Divergence: 0.5 ± 0.3 mrad

  • Wavelength: 842 nm (NIR)

• Rangefinder Laser:

  • Ranging Mode: Single Pulse / Multi-Pulse. Safety Class 1.

  • Beam Divergence: <1.0 mrad

  • Repetition Rate: Mode dependent, continuous ranging up to 1 Hz

  • Wavelength: 1534 nm

  • Optical Pulse Power: ~40 kW

• Environmental:

  • Operating Temperature: -40° F to 140° F (-40° C to 60° C). Subject to appropriate temperature-rated battery

  • Mechanical Shock: 1,500 g, 0.5 ms half-sine

  • Immersion: 3 ft (91 cm) of water for 30 minutes

The X4-LRFTM is a high-performance ranging laser with co-aligned visible and infrared aiming lasers as well as an integrated Applied Ballistics® calculator with on-board environmental and motion sensors, giving you a complete ranging and ballistics solution all in one compact, rugged package.

The X4-LRF comes with an X4 Low-Profile Remote (12" cable length).

The X4-LRF also comes with:

• Rechargeable CR123 battery

• USB-C charging cable

• Lens cleaning cloth

• Drawstring bag

• X4-LRF Alignment Target

• 5/64 Allen Key

• Mini flathead screwdriver

• Quick Start Guide

• User Manual

• Maztech Patch

• Maztech Stickers

Warranty Coverage

3-Year Manufacturer Warranty: Maztech warrants products free from defects in material and workmanship for 3 years from original purchase date. Maztech will repair, replace, or refund defective products at their discretion.

45-Day Return Policy: Original purchasers may return products in unfired condition within 45 days of purchase.

Limitations: Warranty excludes damage from modifications, misuse, improper installation, Acts of God, and consumable parts like batteries (unless due to manufacturing defects).

For complete warranty terms and conditions, visit Maztech's warranty page or email.
