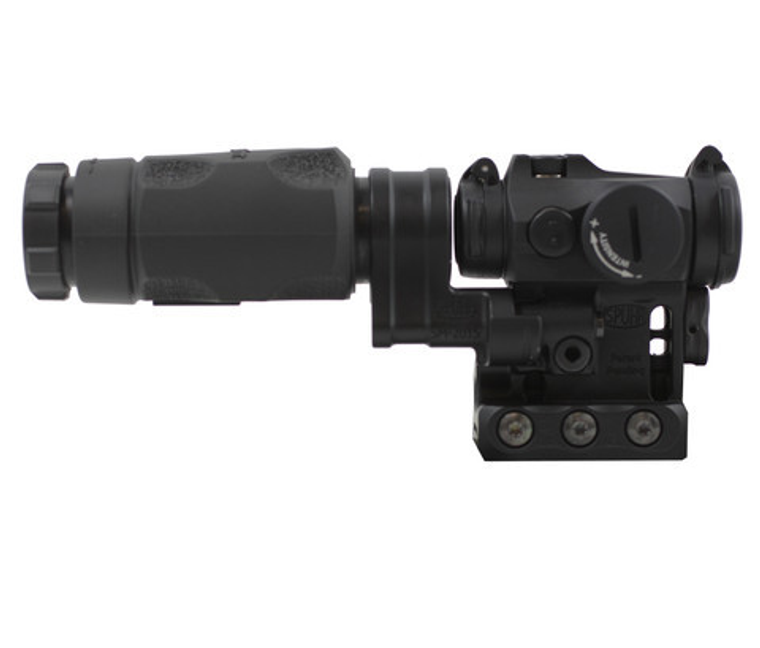

Spuhr RDF-20291KIT: RDF-20291K Aimpoint T-2 Mount 74 mm/2.91", T-2 Red Dot & 3XMag-1™ Magnifier

When purchasing an item on pre-order, do not add additional products to the cart. Any additional items will not ship until the entire order can be fulfilled.
Current Stock:
Adding to cart… The item has been added
When purchasing an item on pre-order, do not add additional products to the cart. Any additional items will not ship until the entire order can be fulfilled.
RDF-20291K Mount w/ Aimpoint T-2 Red Dot & 3XMag-1™ Magnifier - Mount, Red Dot Bundle & Magnifier
The world's toughest Red Dot Sight mount - the preferred choice by the elite teams. Models available in various heights for Aimpoint Micro series.
The Aimpoint® Micro T-2 redefines everything you thought you knew about compact red dot sights. Cutting edge lens coatings radically improve the shape and clarity of the 2 MOA red dot, and physical protection has been added for even more ruggedness.
The Aimpoint® 3XMag-1 Magnifier is a 3x power magnifying module built to withstand the demands of professional end-users. The 3XMag-1™ can be paired with an Aimpoint red dot sight for target acquisition at longer distances or used as a 3X hand-held monocular. The 3XMag-1 magnifier is optimized for use with the Micro T-2/H-2, Patrol Rifle Optic, CompM4 series, and CompM5 series of sights providing a clear, crisp 2 MOA dot under 3x magnification. Centering the dot within the magnifier is quick and easy with the intuitive module windage and elevation adjustments.
RDF-20225K Specifications:
  • Footprint: Aimpoint Micro
  • Height: 74 mm/2.91"
  • Interface: Picatinny Rail
  • Magnifier: Yes
  • Optional Rail: Yes
  • Quick Release: No
Aimpoint® Micro T-2 Specifications:
  • Technology: ACET (Advanced Circuit Efficiency Technology)
  • Working principle: Reflex collimator sight - red dot sight
  • Light source: LED (Light Emitting Diode) totally eye-safe
  • Red dot size in MOA (minute of angle): 2
  • Parallax: Absence of parallax - No centering required
  • Eye relief: Unlimited
  • Night vision compatibility: Yes
  • Anti-reflex coating all surfaces & multi-layer coating objective lens: Yes
  • Magnification: No magnification (1X)
  • Battery: One 3V Lithium battery, type CR2032
  • Battery life in hours: **50 000 (over 5 years of continuous use)
  • Battery life in hours **at NVD settings ***: 500 000
  • Dot intensity adjustment: Manual rotary switch
  • Daylight (DL) settings: 1 Off & 8 DL of which one extra bright
  • NVD settings: 4
  • Material housing: Extruded high strength aluminum
  • Surface finish: Hard anodized, semi-matte
  • Color housing: Black
  • Adjustment 1 click:13mm at 100m, (1/2” at 100yds)
  • Temperature range: -45° - +71° C, (-50° - +160° F)
  • Water resistance - submersible to: 25m, (80ft.)
  • Radioactive components used: None
  • Length: 68mm, (2.7”)
  • Width/height sight only: 41 x 36mm, (1.6” x 1.4”)
  • Weight sight only: 96g, (3.4oz)
Aimpoint® 3XMag-1™ Magnifier Specifications:
  • 3X Optical Magnification
  • Compatible with Aimpoint red dot sights for longer range aiming or observation
  • Variable (-3 to +3) dioptric setting
  • Sold without a mounting solution
  • Can also be used as a handheld 3X monocular
  • No re-zeroing needed when shifting between non-magnified and magnified aiming - utilizes the red dot in Aimpoint sights as the aiming reticle
  • Ergonomic design for sure grip when used as a handheld observation tool
  • Shockproof and Waterproof
  • Screws and Allen key included
  • Field of view (FOV): 7°
  • Eye relief: 2.8 in (70 mm)
  • Submersible to 80 feet (25 meters)
  • Temperature span -49°F to +160°F
  • Weight 8.1 oz / 230 g (magnifier only)
