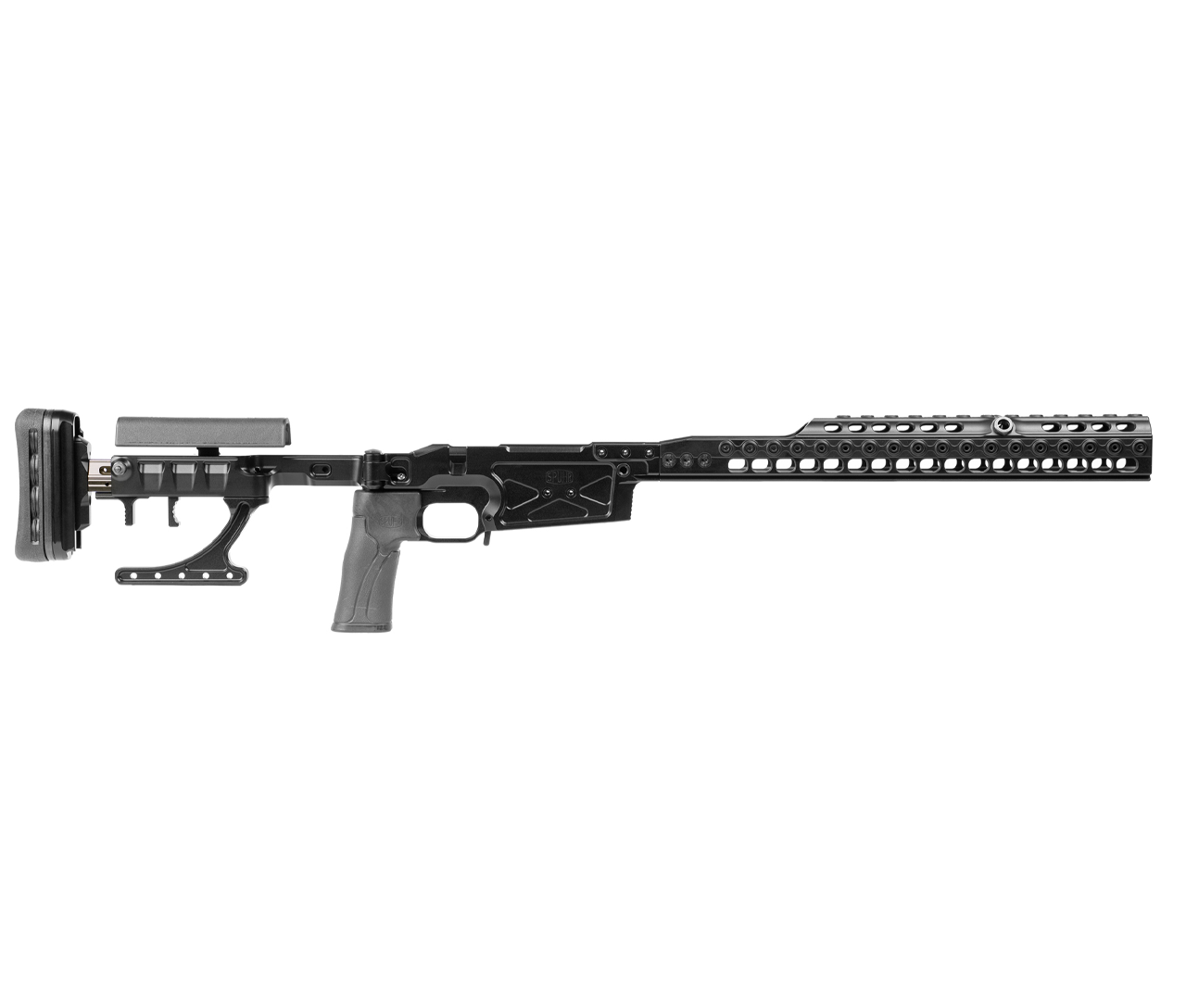

Spuhr: SICS - Spuhr Ideal Chassis System, Black, 16" - Rem 700 SA

Spuhr® Ideal Chassis System™ - Modular Chassis System with Quick-Adjustable LOP and Recoil Pad Height Designed for Remington 700 clones, such as the Cadex Defense CDX-R7 and similar actions, where the firing pin cocking piece has a lower travel than a standard Remington 700. Will also fit short actions from:

• BAT Machine
• Curtis Custom
• KS Arms (Note: low bolt stops may require modification for clearance)
• Surgeon Rifles
• Terminus
• Zermatt Arms/Bighorn Arms

Note: Actions with 60-degree bolt throw may not allow stock to be folded over closed bolt.

16" Forend for barrel profiles up to Heavy Varmint profile. Features Spuhr Interfaces™ along the top of the forend for use with NV devices and illuminators, etc.

Specifications:

• Length: 975 mm/38.4” (685 mm/27.0” folded)
• Width: 48.5 mm/1.9”
• Height: 180 mm/7.1”
• Weight: 2.37 kg/5.22 lb
• Forend: 406 mm/16.0”
• Color: Black

The Spuhr® Ideal Chassis System™ (SICS™) is a modular chassis system, designed to provide a rigid support of the barreled action for improved accuracy. The SICS™ features:

• Aircraft grade aluminum alloy construction
• Folding stock assembly with adjustment for solid lockup
• Quick-adjustable length-of-pull (50 mm/1.97” travel) and recoil pad height (32 mm/1.25”) – toolless and without play • Height and length-adjustable cheek piece
• Length-adjustable proprietary pistol grip (8 mm/0.32” travel, AR-compatible)
• 16” Spuhr Interface™ forend with integrated ARCA Swiss rail and QD sling cups
• AICS pattern magwell - not for AI AX magazines • Built-in barricade stop

Action R700 Low Cocking Piece

Forend 16" Standard

Color Black Hardcoat Anodized
