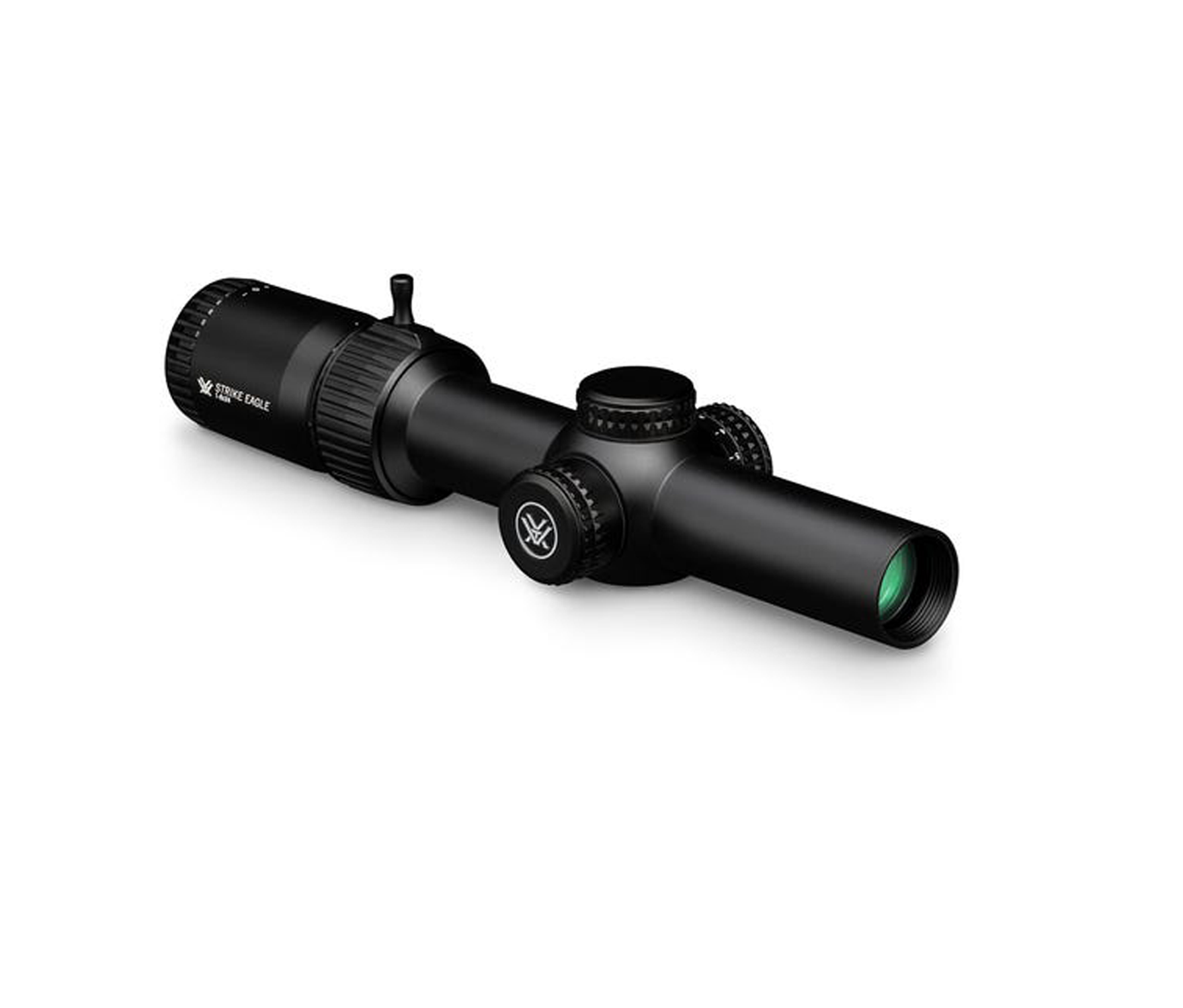

Vortex: StrikeEagle 1-8x24 SFP, AR-BDC3 MOA

Vortex Optics
SKU:
SE-1824-2
UPC:
843829110952
Availability:
All orders for optics and related items will be verified before shipment.
$499.99
$599.99
(You save $100.00 )
(No reviews yet)
Current Stock:

Discount Pricing Program - LE/MIL, First Responders & Other Qualified Professionals. Please call us at 303.255.9999.

New MHSA optic guarantee: If you're not happy we're not happy. Customers have 30 days to exchange, must have been purchased from Mile High Shooting with matching serial numbers. Must be in "like new" condition, with box and all paperwork, free of damage. Customers pay shipping both ways, one exchange per purchase.

Glassing out west demands an HD optic, but other systems can't get you the clarity you need to see a tail twitch in low light, or pick a tine out of dense cover. The redesigned Diamondback HD spotting scopes have all the horsepower the long-distance hunter needs, and they excel in lowlight—right when you need it most. Vortex has also streamlined the exterior for a sleeker, snag-free profile, building in a helical focus wheel.

Features

  • Illuminated Reticle Provides precise aiming under low-light conditions
  • Fully Multi-Coated Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
  • Second Focal Plane Reticle Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
  • Glass-Etched Reticle Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
  • AR-BDC3 RETICLEThe illuminated, glass-etched AR-BDC3 is specifically tuned to the ballistic performance of common 5.56 loads out of an AR-15. The 1 MOA center dot provides a precise point of aim while the surrounding 16.625 MOA broken circle gets your eye into the center faster for rapid target acquisition, and the BDC keeps you on target out to 650 yards.

Specifications

  • Magnification: 1x - 8x
  • Focal Plane: Second
  • Tube Diameter: 30mm
  • Objective Lense Diameter: 24mm
  • Eye Relief: 3.5 in.
  • Parallax: Fixed @ 100 yards
  • Field of View @ 100 yards: 1x/109ft, 8x/14.4ft
  • Elevation Adjustment Range: 40 MRAD/140 MOA
  • Windage Adjustment Range: 40 MRAD/140 MOA
  • Travel Per Rotation: 44 MOA
  • Click Value: .25 MOA
  • Reticle: AR-BDC3 (MOA)
  • Reticle Illumination: Yes
  • Turret: Capped
  • Length: 10 in.
  • Weight: 17.6 oz.









Max Magnification:
8X
Reticle Position:
Second Focal Plane
Adjustment:
MOA
