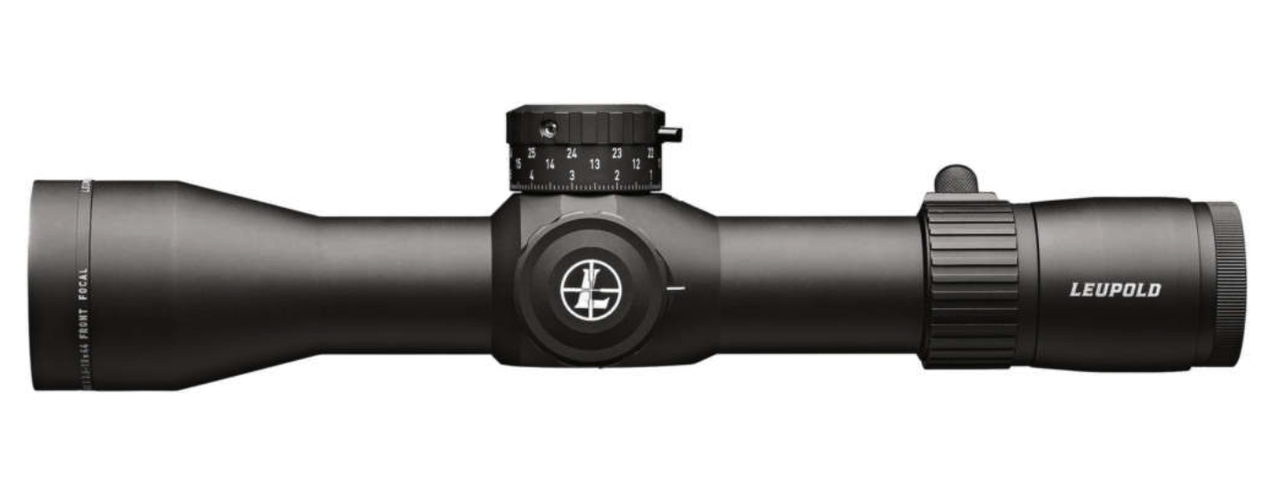

Pick up a Mark 5HD™ 3.6-18x44mm and you'll feel the difference. It's up to 20 ounces lighter than other riflescopes in its class, giving you an advantage in the field or at the range. The versatile 3.6-18x magnification range helps you engage close targets, while also giving you the flexibility to reach out to long distances. With three revolutions of elevation adjustment and multiple reticle options, this scope will max out the performance of the latest long-range rifles and ammunition, guaranteed.
Built around Leupold’s Professional-Grade Optical System, the Mark 5HD offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter. Ergonomically designed with more tactile and audible click adjustments, larger numbers, and a high-speed throw lever, the Mark 5HD is built to put accurate fire downrange faster.
The unique combination of features, durability, and professional-grade optical performance guarantees that the Mark 5HD can handle any challenge you throw at it. It's 100% waterproof and fogproof, and like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed to perform for life.
A versatile 5:1 zoom ratio gives you 5 times more magnification at high power than at low power (model magnification ranges may be available in powers of 5x: 1-5, 2-10, 3-15, 4-20, etc.), so you can adjust your magnification to find the perfect balance between magnification and field of view for any situation. The larger the zoom ratio, the more versatile one scope can be.
Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.
Aluminum offers excellent durability and ruggedness without adding unnecessary weight.
The low-profile dials are available on select models and provide up to 30-MILs of adjustment in 3 revolutions and 0.1 MIL clicks. Visual and tactile revolution indicators ensure you don’t get lost in the travel. The ZeroLock® feature prevents inadvertent adjustments and ensures accurate return to zero.The side focus adjusts the scope's parallax, making the reticle clearer and have less perceived movement when you're shooting at different distances.
The ZeroLock® system eliminates accidental dial movement by locking it in place.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
The side focus adjusts the scope's parallax, making the reticle clearer and have less perceived movement when you're shooting at different distances.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
|A| Total Length (in) - 12.1 |B| Total Mounting Space (in) - 5.9 |C| Front Mounting Space (in) - 1.7
|D| Rear Mounting Space (in) - 2 |E| Eyepiece Length (in) - 3.3 |F| Objective Length (in) - 2.9
|G| Objective Diameter (in) - 2.1 |H| Eyepiece Diameter (in)- 1.8 |K| Maintube Diameter (mm) - 35
Adjustable Objective: No
Reticle Focal Plane: First Focal Plane
Elevation Adjustment Type: M5C3
Locking Dial: Yes
Revolution Indicator: Yes
Rezero Type: Set Screw
Windage Adjustment Type: Capped
Custom Dial System (CDS): No
BDC Dial Included: No
Reticle Type: First Focal Plane
Reticle: FFP PR1-MIL
Light Management System: Twighlight Max HD
Magnification Type: Variable
Nightvision Compatible Illumination: No
Daylight Bright Illumination: No
Motion Sensor Technology (MST): No
Electronic Reticle Level: No
Guard-ion Lens Coating: No
Weight (oz): 26
Elevation Adjustment Value per Click : 0.1Mil
Elevation Adjustment Range (MOA): 100
Elevation Adjustment Range (MIL): 29
Elevation Adjustment Range (cm @ 100m): 291
Elevation Adjustment Per Revolution: 10.5 MIL
Elevation Dial Travel Limit: 30MIL
Windage Adjustment Value per Click: 0.1Mil
Windage Adjustment Range (MOA): 80
Windage Adjustment Range (MIL): 23
Windage Adjustment Range (cm @ 100m): 233
Windage Adjustment Per Revolution: 10 MIL
Magnification Max: 18
Magnification Min: 3.6
Objective Lens Diameter (mm): 44
Linear FOV Low Mag ([email protected]): 28.3
Linear FOV High Mag ([email protected]): 5.8
Angular FOV Low Mag (Degrees): 5.4
Angular FOV High Mag (Degrees): 1.1
Eye Relief Low Mag (in): 3.5
Eye Relief High Mag (in): 3.8
Minimum Parallax-Free Distance (yd): 50
U.S. Government Export Restriction
