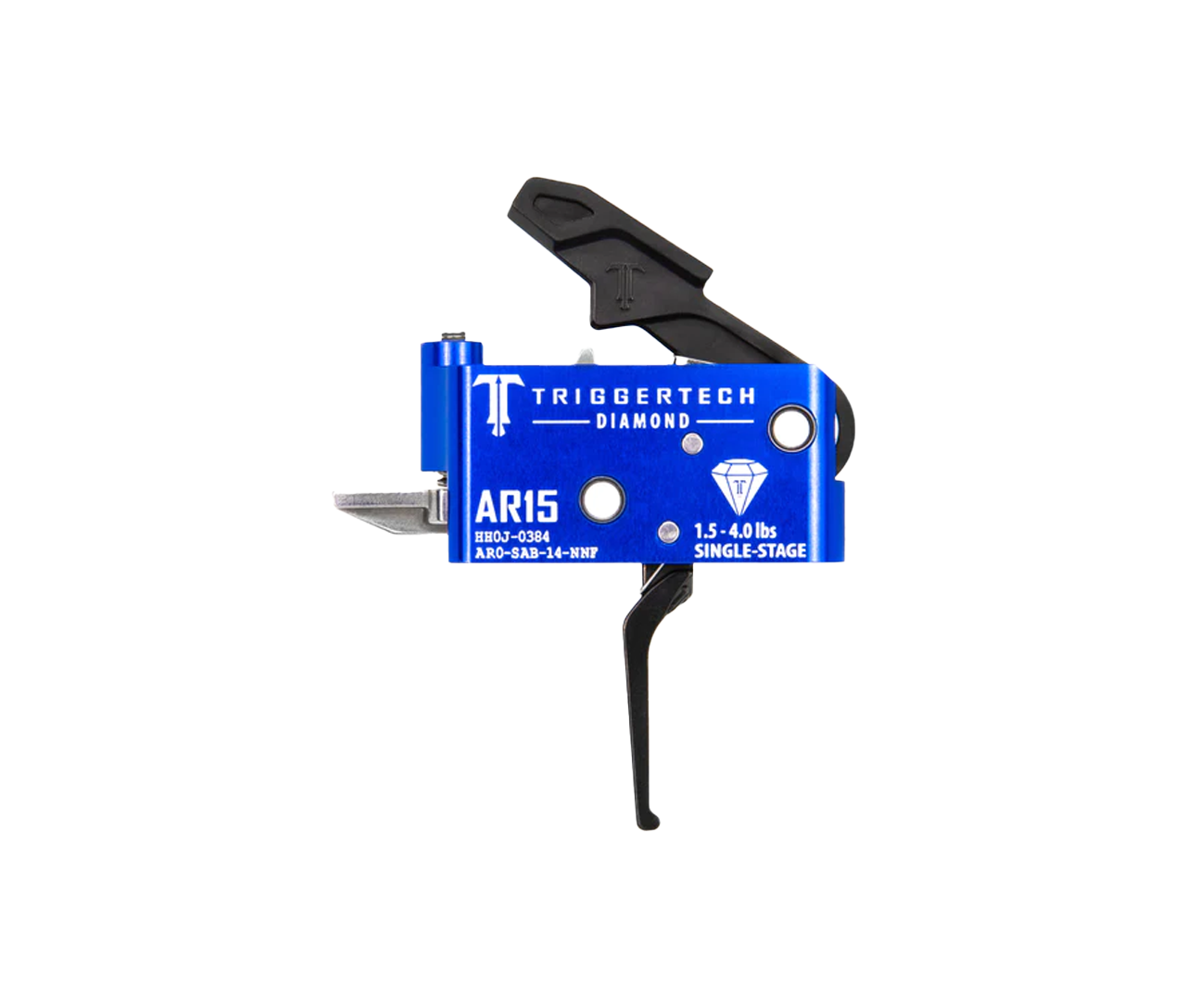

TriggerTech: AR15 Single-Stage - PVD Black Straight Flat

TriggerTech
SKU:
AR0-SAB-14-NNF
UPC:
885768003346
$304.99
(No reviews yet)
Current Stock:
Adding to cart… The item has been added

The TriggerTech AR15 Single-Stage drop-in AR trigger provides a true zero-creep break, extremely short overtravel, a sub 0.030” tactical reset, and offers outstanding reliability, even in the harshest environments. Utilizing CLKR Technology™, the pull weight is quickly and confidently be adjusted in 2oz increments from a set screw with the trigger installed. Due to there being truly zero creep, most shooters report the pull weights feeling ~0.5 lbs lighter than a friction-based trigger of the same measured pull weight. Changing the triggers pull weight does not affect hammer force so you get dependable primer strikes at every weight. Zero Creep Technology™, along with hardened 440C stainless steel internal components ensure corrosion resistance and an extended service life. As Zero Creep Technology™ does not rely on coating, polishing, or lubricating the key engagement surfaces, trigger pulls will be more consistent from shot to shot and after thousands of shots than you ever thought possible.

Developing the Single-Stage AR

To develop a TriggerTech Single-Stage AR15 trigger TriggerTech started with their proven Two-Stage AR platform that has been in the field since 2016 and combined it with a serious amount of ingenuity from their engineering department. While it was initially viewed as not possible, their team of engineers developed a solution that allowed us to eliminate the need for a first-stage within their two-stage. The result has all of us at TriggerTech scratching their heads - TriggerTech always felt that the unique combination of a short first stage, true Zero-Creep break, extremely short over travel, and the ability to reset on the 2nd stage made their Two-Stage the perfect AR15 trigger. Now that TriggerTech has its fingers on the only true Zero-Creep, Single-Stage AR trigger they are all in agreement – the new TriggerTech Single-Stage AR15 is their new go-to for most applications.

The Single-Stage AR Line-Up

The Single-Stage AR Triggers will be offered in a wide lineup that gives customers choice but stops short of overwhelming them. Their AR15 triggers are available now and the AR10 and AR9 ones will be released in the near future.

Technology

The same Zero-Creep Technology™ is used in their single-stage AR triggers which is comprised of a patented, free-floating roller that is captured between the sear and the ticker. This advancement makes it possible for us to eliminate creep from every one of the triggers.

Although the TriggerTech Single-Stage AR may look very close to its Two-Stage AR counterpart, developing the Single-Stage AR was no easy task. Many factors come into play that created challenges for their engineering team. The major challenge was that TriggerTech's disconnect technology was originally designed to require a first stage. Eliminating any movement in the lever before the break required a completely new disconnect profile. Another advantage of the two-stage design from a manufacturing perspective is that any stack-up lever ‘slop’ is masked by the first stage. TriggerTech had to revisit the processes and tolerances for all three pivots in the lever-disconnect stack to ensure a perfectly crisp first stage.

New Disconnect

This a trigger scan that shows the force and displacement of their Single-Stage AR Diamond Trigger vs. a Two-Stage AR Diamond Trigger both set at 1.5 lbs. The chart shows the single-stage’s immediate zero creep break.

Intended Use

3 Gun, close quarter engagement, competition, harsh environments operations, high-speed shooting, law enforcement, long range hunting, military, precision shooting, rugged hunting, target shooting, varmint hunting.

Trigger Control Details

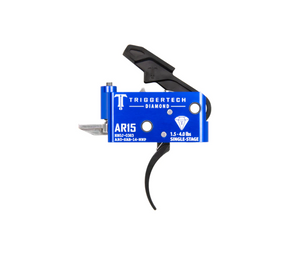

  • Trigger Lever Type: Pro Curved or Flat Straight
  • Trigger Action: Single-Stage
  • Zero Creep™: Yes
  • TKR Technology: Yes
  • CLKR Technology: Yes
  • FLTWR Technology: Yes
  • Creep: 0.000"
  • Overtravel: < 0.015"
  • Reset: < 0.030"
  • Reset Feel: Tactile mid force
  • Hammer Strike Force: Full
  • Pin Size: Standard Mil-Spec Pin 0.154" (trigger pins not included)

Material Details

  • Housing: 7075 Aluminum (anodized)
  • Key Components: 440C Stainless Steel
  • PVD Black – PVD stands for Physical Vapour Deposition. It is a hard and durable coating that is applied to external stainless components to give them a clean black color.

All pull weights and measurements are approximate.
