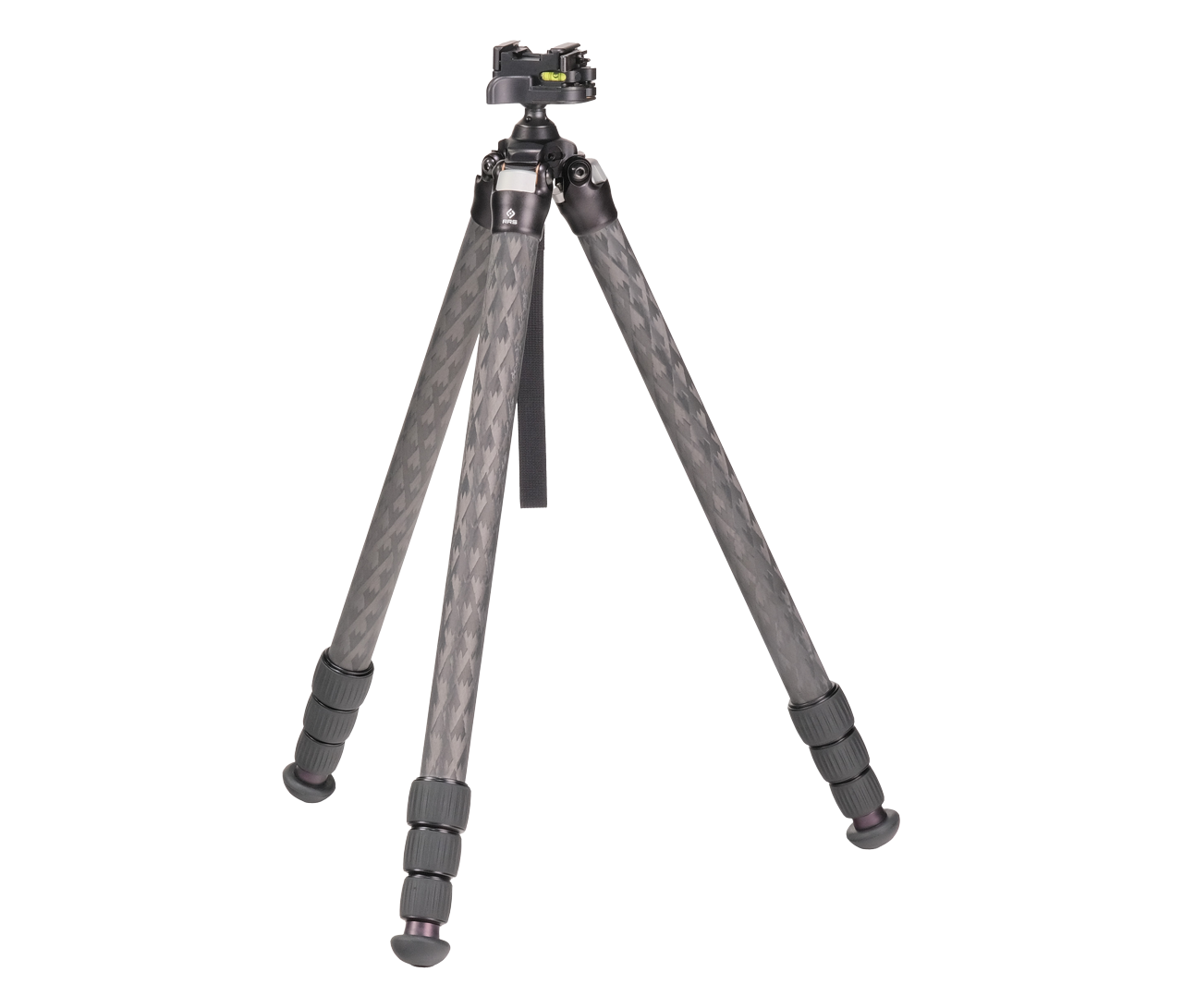

Weighing in at 3.51lbs it's the lightest and most compact TFCT TripodEasily packable on the longest backcountry expeditions
Modular Design
Compatible with the Ascend center column to add additional height and head options/p>
Features four angle stop positions to increase shooting position capabilities. R-LOCK™ COMPATIBLE features the Anvil-30 ARC ball head equipped with R-Lock™Backwards compatible with non R-Lock™ products
Features:
- R-Lock™ (short for Rapid-Lock) System adds unique safety-stop features which are built in to both a mounting rail and quick-release clamp that adhere to the RRS 1.5” Standard. The advantage of the System is the user has multiple “hard-stop” positions along the rail while retaining smooth edges and corners for maximum ergonomics and a snag-free interface that is inherently resistant to wearing down. The ”hard-stop” feature is comprised of a 5mm diameter steel pin that engages 5.5mm diameter holes in the rail. In addition to supplementing the traditional friction-based clamping mechanism, the interface prevents unintentional repositioning of the rail within the clamp when the R-LOCK™ is engaged.
- Adjustable clamp jaw allows compatibility with many other arca-type rails that are not in spec with the RRS 1.5" Dovetail Standard
- O-rings help keep threads clean and smooth while providing better tactile feedback
- Vented clevis design allow legs to collapse faster without pressure buildup
- Threaded sockets on the sides of the apex provide better placement for accessories like QD attachments or a BC-18
- Patent-pending Taper Lock System secures the ball head inside the apex making it unable to slip
- Offset Leg Joints: Tripods must occasionally withstand tremendous bending and torsion loads. It is crucial that the leg angle stops and all other structural joints are well supported. Really Right Stuff's patented offset leg joints fully support the leg angle stops allowing loads to be transferred straight through the strongest members of the tripod. This also means the tripod is more compact when collapsed.
- Rubber Ball Feet: Large diameter teardrop shape keeps leg sidewalls from touching the ground even at the lowest settings and makes positive contact with the ground at virtually any angle.
- Anodized, Type 3 Black
- High strength to weight ratio
- Made from CNC-machined 6061 T6 Aluminum
- Solid ring apex for strength and reliability
- Ergonomic spring-loaded pull tabs with visual lock/unlock
- Fast, modular and customizable design
Specifications:
- Number of Leg Sections: 4
- Load Capacity 1st Position Fully Extended: 85lbs/ 39kg
- Load Capacity 2nd Position Fully Extended: 50lbs/ 23kg
- Load Capacity 3rd Position Fully Collapsed: 70lbs/ 32kb
- 1st Position Maximum Height: 60.8"/ 155cm
- 1st Position Minimum Height: 21.8"/ 55cm
- 2nd Position Maximum Height: 42.7"/ 109cm
- 2nd Position Minimum Height: 16.3"/ 41cm
- 3rd Position Minumum Height: 6.4"/ 16cm
- Folded Length: 23.6"/ 60cm
- Folded Diameter: 4.1"/ 10cm
- Weight: 4.79lbs/ 2173g
In the Box:
- (1) TFCT Tripod
- (1) Anvil-30 ARC Ballhead (Installed)
- (2) 3/16" hex keys (required to adjust leg angle tension)
- (1) 9/64" hex key (required to loosen/tighten Anvil-30 screws)
- (1) User's guide
