Features:
- RRS-Lock (short for Rapid-Lock) System adds unique safety-stop features which are built in to both a mounting rail and quick-release clamp that adhere to the RRS 1.5” Standard. The advantage of the System is the user has multiple “hard-stop” positions along the rail while retaining smooth edges and corners for maximum ergonomics and a snag-free interface that is inherently resistant to wearing down. The ”hard-stop” feature is comprised of a 5mm diameter steel pin that engages 5.5mm diameter holes in the rail. In addition to supplementing the traditional friction-based clamping mechanism, the interface prevents unintentional repositioning of the rail within the clamp when the RRS-LOCK is engaged.
- Adjustable clamp jaw allows compatibility with many other arca-type rails that are not in spec with the RRS 1.5" Dovetail Standard
- Patent Pending Dual lever-release clamp for fast and easy mounting on RRS Dovetail and Picatinny sections
- Ergonomic design gives superior handling and unsurpassed reliability
- Stronger, lighter, faster than anything we have seen on the market
- Re-positionable lever-release for a variety of situations
- Highly-visible level embedded in both front and back sides of the main ball body for left and right-handed users
- Laser-engraved millimeter scale offers precise centering and positioning within the clamp jaw
- All components are of the finest RRS quality, machined from solid aircraft aluminum or stainless steel for maximum durability and minimum weight
Specifications:
- Number of Leg Sections: 3
- Load Capacity 1st Position Fully Extended: 85lbs/ 39kg
- Load Capacity 2nd Position Fully Extended: 50lbs/ 23kg
- Load Capacity 3rd Position Fully Collapsed: 65lbs/ 29kg
- 1st Position Maximum Height: 60.9"/ 155cm
- 1st Position Minimum Height: 25.9"/ 66cm
- 1st Position 2/3 Segments Extended: 43.0"/ 109cm
- 2nd Position Maximum Height: 24.9"/ 109cm
- 2nd Position Minimum Height: 19.1"/ 49cm
- 3rd Position Minimum Height: 7"/ 18cm
- Folded Length: 28.0"/ 71cm
- Folded Diameter: 4.1"/ 10.4cm
- Weight: 4.66lbs/ 2114g
In the Box:

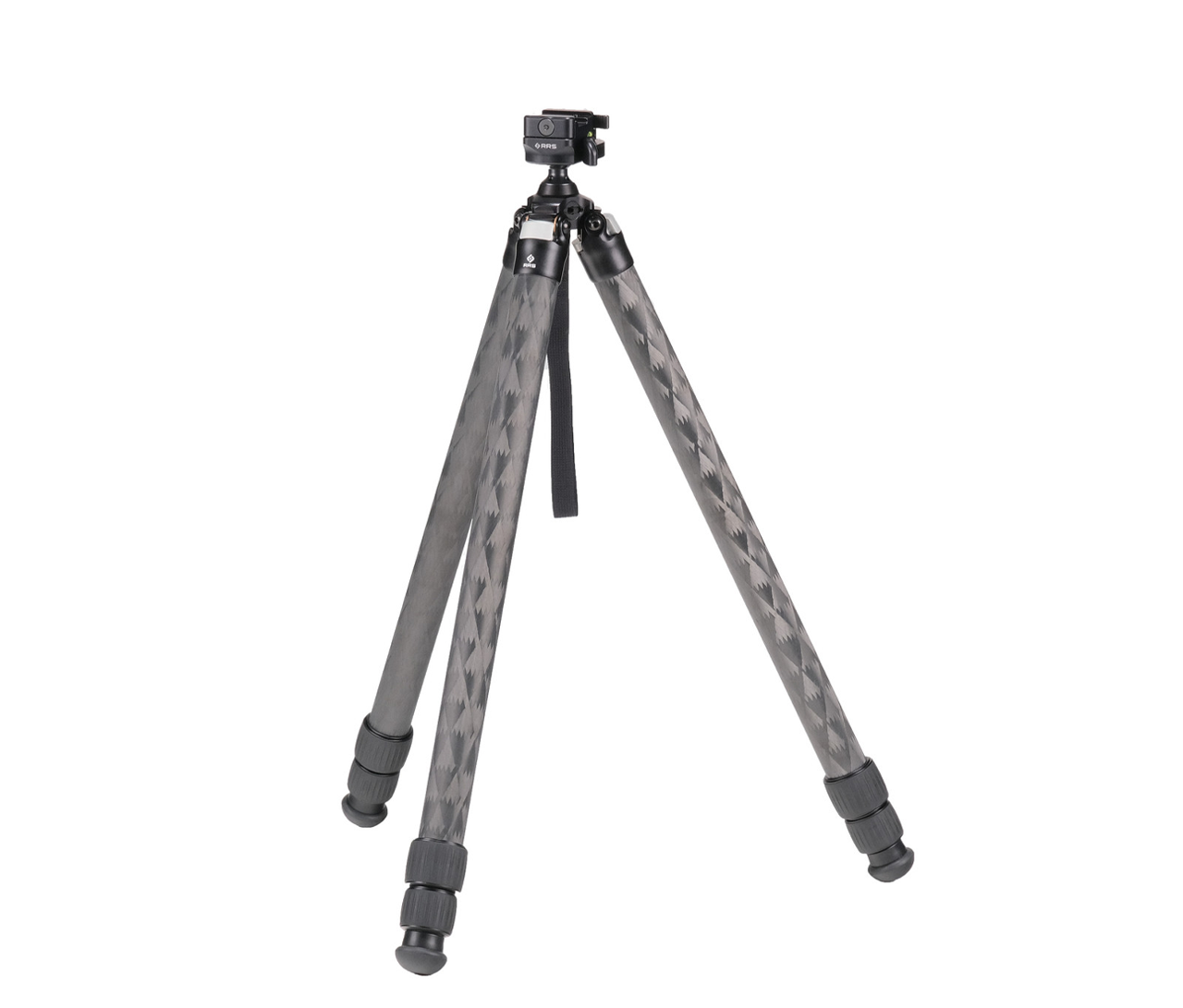

- (1) TFCT Tripod
- (1) Anvil-30 ARC Ballhead (Installed)
- (2) 3/16" hex keys (required to adjust leg angle tension)
- (1) 9/64" hex key (required to loosen/tighten Anvil-30 screws)
- (1) User's guide
